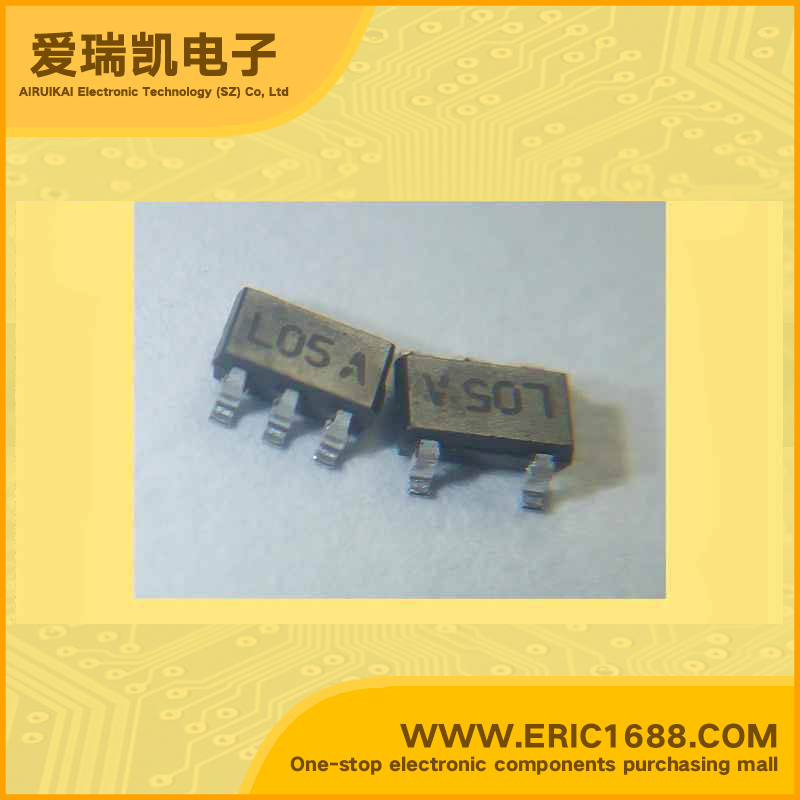

LP2981AIM5X-3.0 LDO Voltage Regulator 3V 200mV/0.2V SOT-153/MF05A/SOT23-5 marking L05A Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | -0.3~16V |
| 输出电压VOUT Voltage - Output | 3V |
| 输出电流Io Current - Output | 100mA/0.1A |
| 最大压降VDO Voltage - Dropout | 200mV/0.2V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | Micropower 100 mA Ultra Low-Dropout Regulator ;•Ultra low dropout voltage •Output voltage accuracy 0.75% (A Grade) •Guaranteed 100 mA output current •Smallest possible size (SOT-23, micro SMD package) •< 1 µA quiescent current when shutdown •Low ground pin current at all load currents •High peak current capability (300 mA typical) •Wide supply voltage range (16V max) •Fast dynamic response to line and load •Low ZOUT •over wide frequency range •Overtemperature/overcurrent protection •−40˚C to +125˚C junction temperature range • Cellular Phone • Palmtop/Laptop Computer •Personal Digital Assistant (PDA) •Camcorder, Personal Stereo, Camera |
| 描述与应用 | 微100毫安超低压差稳压器;•超低压差电压 •输出电压精度为0.75％（A级） •保证100 mA的输出电流 •尽可能小的尺寸（SOT-23，micro SMD封装） <1μA的静态电流，关断时 •低接地端子电流在所有负载电流 •高的峰值电流能力（300 mA典型） •宽电源电压范围（16V最大） •动态响应速度快，线路和负载 •在很宽的频率范围 •过热/过流保护 •-40˚C至+125˚C的结温范围内 •移动电话 •掌上电脑/笔记本电脑 •个人数字助理（PDA） •摄像机，照相机，个人立体声 |
