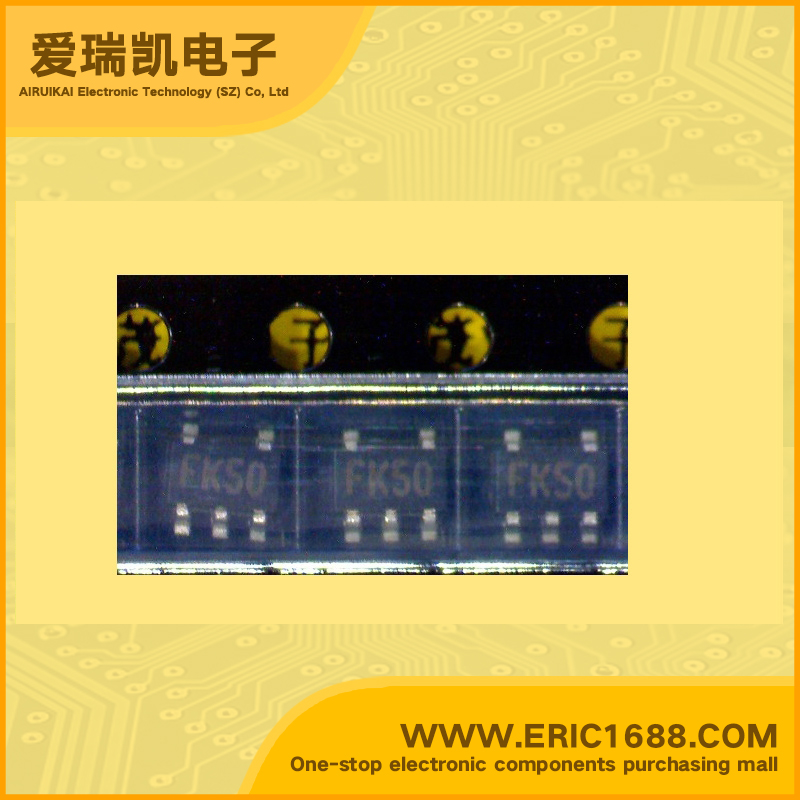

LK112M50TR LDO Voltage Regulator 5V 290mV/0.29V SOT-153/SOT23-5 marking FK50 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 16V |
| 输出电压VOUT Voltage - Output | 5V |
| 输出电流Io Current - Output | 150mA/0.15A |
| 最大压降VDO Voltage - Dropout | 290mV/0.29V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | LOW NOISE LOW DROP VOLTAGE REGULATOR WITH SHUTDOWN FUNCTION ;•OUTPUT CURRENT UP TO 150mA •LOW DROPOUT VOLTAGE (350mV AT IOUT=150mA) •VERY LOW QUIESCENT CURRENT: 0.1µA •IN OFF MODE AND MAX 250µA IN ON •MODE AT IOUT=0mA • LOW OUTPUT NOISE: TYP 30µV AT IOUT=60mA AND 10Hz |
| 描述与应用 | 低噪声低压降稳压器 具有关断状态的功能;•输出电流高达150mA •低压差（350MV IOUT=150毫安时） •极低的静态电流：0.1μA 在关机模式和最大250μA，在上 •AT IOUT=0毫安的模式 •低输出噪声：30μVTYP在IOUT=60毫安与10HZ |
