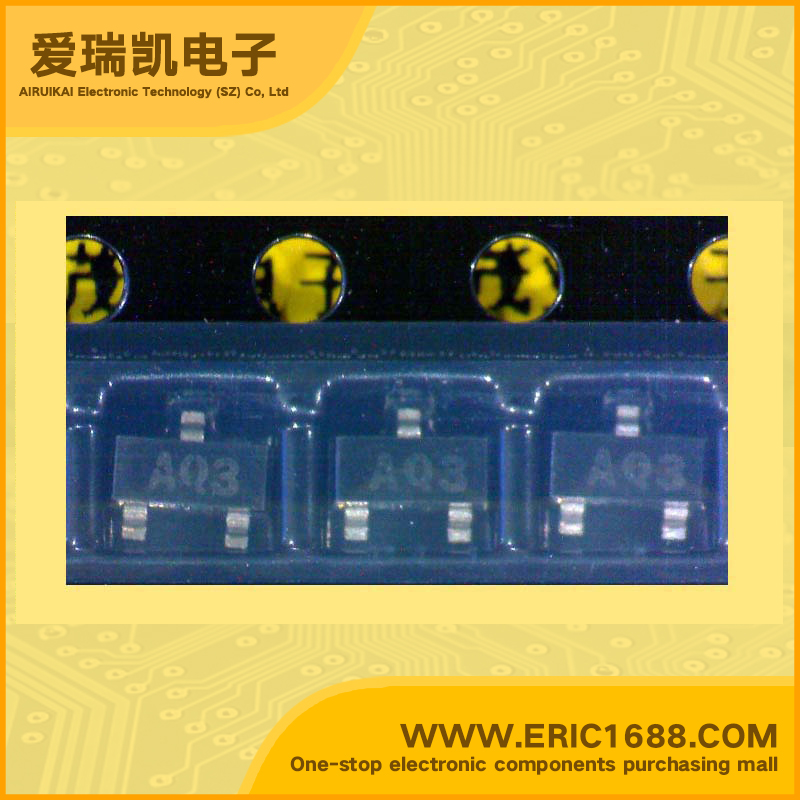

SMV1236-004 Variable Capacitance Diodes (Varicaps, Varactors) 15V 15.5pF-18.5pF 1.6-2.0 SOT-23/SC-59 marking AQ3 tuning
| 反向电压VR Reverse Voltage | 15V |
| 电容值C Diode capacitance | 15.5pF-18.5pF |
| @反向电压VR @Reverse Voltage | 1V |
| 电容值C Diode capacitance | 9.2pF |
| @反向电压VR @Reverse Voltage | 3V |
| 电容比 Capacitance ratio | 1.6-2.0 |
| Description & Applications | Hyperabrupt Junction Tuning Varactors Description The SMV1211–SMV1215 series of silicon hyperabrupt junction varactor diodes is designed for use in VCOs with low tuning voltage operation. This family of varactors is characterized for capacitanceand resistance over temperature. SPICE models are provided. High capacitance ratio Low series resistance for low phase noise Multiple packages SOT-23, SOD-323, SC-70 and SC-79 Designed for high volume commercial applications Full characterization with SPICE models |
| 描述与应用 | 超突变结调谐变容二极管 描述 SMV1211 SMV1215系列硅超突变结变容二极管是专为使用在VCO调谐电压低 操作。这一系列的变容二极管电容的特点是 和电阻温度过高。 SPICE模型。 高电容率 低相位噪声低串联电阻 多个程序封装SOD-323，SOT-23，SC-70，SC-79 SPICE模型全特性 |
