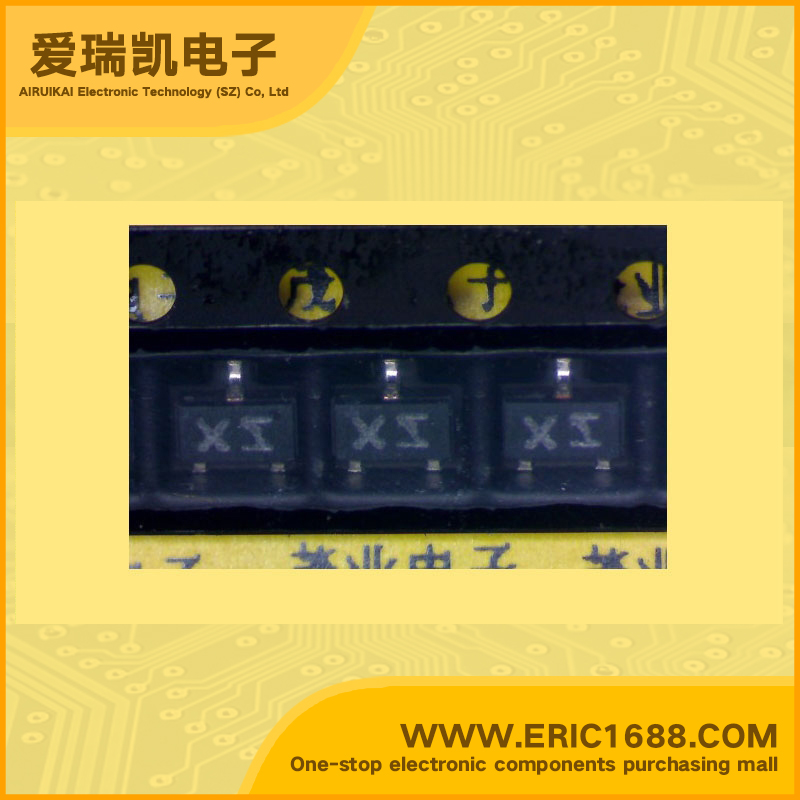

RN1415 NPN Bipolar Digital Transistor (BRT) 50V 100mA/0.1A 2.2k 10k SOT-523/ESM marking XS switch inverting circuit interface circuit and driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)50V
集电极连续输出电流IC Collector Current(IC)100mA/0.1A
基极输入电阻R1 Input Resistance(R1)2.2KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2)10KΩ/Ohm
电阻比(R1/R2) Resistance Ratio0.22
直流电流增益hFE DC Current Gain(hFE)50
截止频率fT Transtion Frequency(fT)250MHz
耗散功率Pc Power Dissipation0.1W/100mW
Description & ApplicationsSwitchingInverter Circuit, Interface Circuit And Driver Circuit Applications With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process Complementary to RN2414~2418
描述与应用开关,逆变电路,接口电路 和驱动器电路应用 借助内置的偏置电阻 简化电路设计 数量减少了零件和制造工艺 互补RN2414〜2418
