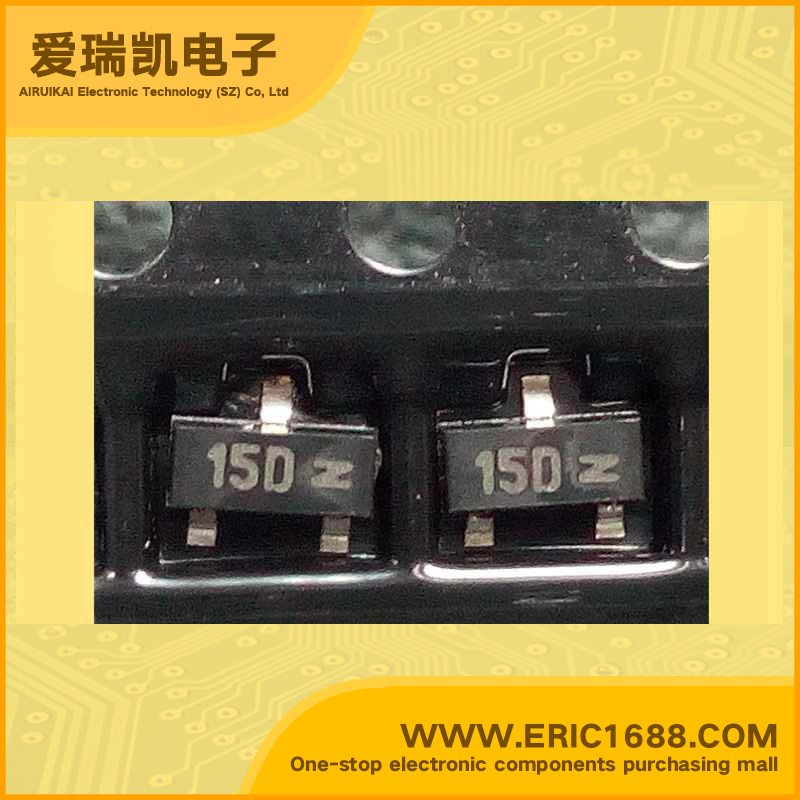

MMBZ15VDLT1 TVS/ESD 12V 1.9A 0.225W/225mW SOT23-15V marking 15D

Hot selling goods

Product description
极性
Polarization
单向 Unidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
12V
反向击穿电压VBR
Breakdown Voltage
15V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
40W
峰值脉冲电流IPPm
Peak Forward Surge Current
1.9A
额定耗散功率Pd
Power dissipation
0.225W/225mW
Description & Applications24 and 40 Watt Peak Power Zener Transient Voltage Suppressors;Features • Pb−Free Packages are Available • SOT−23 Package Allows Either Two Separate UnidirectionalConfigurations or a Single Bidirectional Configuration • Working Peak Reverse Voltage Range − 3 V to 26 V • Standard Zener Breakdown Voltage Range − 5.6 V to 33 V • Peak Power − 24 or 40 Watts @ 1.0 ms (Unidirectional), • ESD Rating of Class N (exceeding 16 kV) per the Human Body Model • Maximum Clamping Voltage @ Peak Pulse Current • Low Leakage < 5.0 uA • Flammability Rating UL 94 V−O
描述与应用24和40瓦峰值功率 齐纳瞬态电压 抑制器;特性 •无铅包可用 •SOT-23封装允许无论是两个独立的单向配置或单双向配置 •工作峰值反向电压范围 - 3 V至26 V •标准齐纳击穿电压范围 - 5.6 V至33 V •峰值电力 - 24或40 Watts@1.0毫秒(单向), •每人类N类(超过16 kV)ESD额定值人体模型 •最大钳位电压峰值脉冲电流 •低漏<5.0 uA •阻燃等级UL 94 V-O
