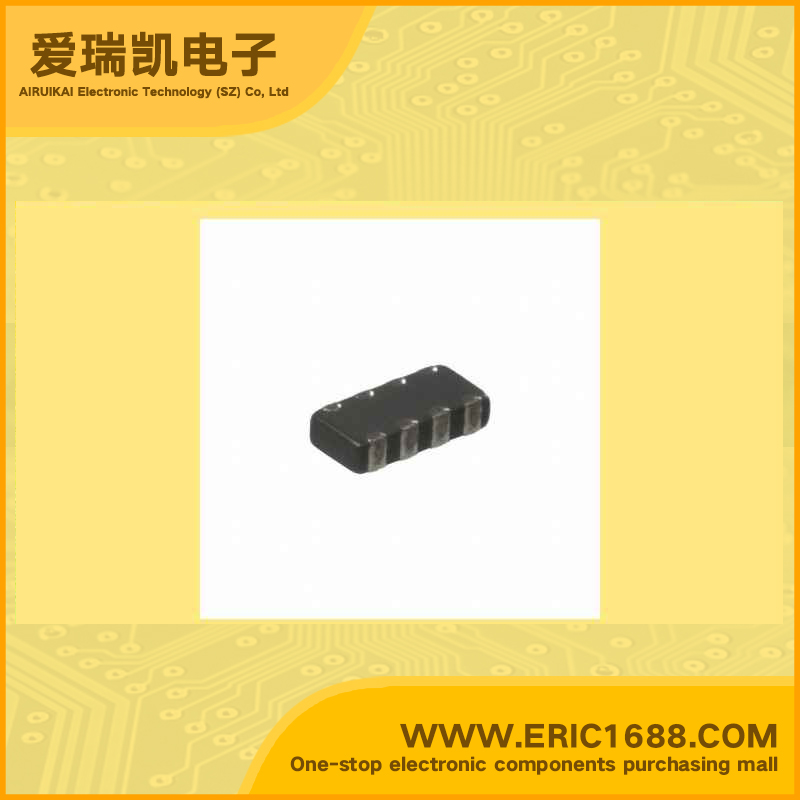

EXC28CG900U Common Mode Choke 4(0402)
| 线路数 Number of Lines | |
| 电感值 Inductance | |
| 电流 Current | 130mA |
| 电阻DCR DC Resistance (DCR) | 3R |
| 阻抗 Impedance | 90R |
| Description & Applications | Features 2 Common mode noise fi lters in one package Small size and low-profi le(L 2.0 mm W 1.0 mm H 0.5 mm) The 3 GHz or wider signal pass band prevents rounding of transmitted signal waveforms. The TDR value is controlled to 100 (typ.), preventing transmission signal refl ection The fi lter passed the HDMI eye pattern test, and was improved against jitters, phase shifting, and other waveform deformations. Reduce the common mode noise and reform the signal wave by high-coupled inductors Magnetic shield type RoHS compliant Recommended Applications HDMI data lines such as TV, STB, DVD, DVC. S-ATA data lines such as PCs , HDD. |
| 描述与应用 | 特点 2共模噪声滤波器在一个包 小尺寸和低利润LE（L W 1.0毫米2.0毫米？H 0.5毫米） 3 GHz或更宽的信号通频带传输信号波形防止四舍五入。 TDR的值被控制在100？ （典型值），REFL挠度防止传输信号滤波器通过HDMI眼图测试，并提高对抖动，相位偏移，并波形变形等。 高耦合电感，降低共模噪声和改革的信号波 磁屏蔽类型 符合RoHS标准 推荐应用 HDMI数据线，如电视，机顶盒，DVD，DVC。 S-ATA数据线，如PC，硬盘驱动器。 |
