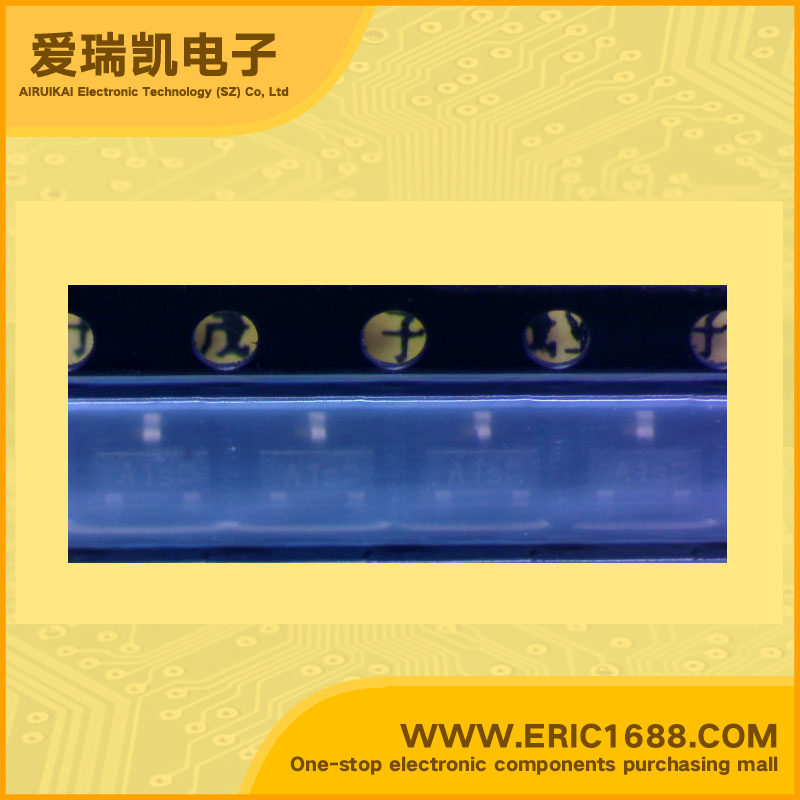

BAW56 1 PAir Common Anode Switching Diodes 80V 200mA/0.2A SOT-23/SC-59 marking A1 highspeed switch

Model：BAW56
Mark / screen / code / typing：A1
Manufacturer：
Date Code：05+
Package：SOT-23/SC-59
Standard Package：3000
Min Order：10

Hot selling goods

Product description

反向电压Vr Reverse Voltage	80V
平均整流电流Io Average Rectified Current	200mA/0.2A
最大正向压降VF Forward Voltage(Vf)	1.25V
反向恢复时间Trr Reverse Recovery Time	4NS
最大耗散功率Pd Power Dissipation	330mW/0.33W
Description & Applications	• Silicon Switching Diode • For high-speed switching ApplicAtions • Common Anode configurAtion
描述与应用	•硅开关二极管 •对于高速开关应用 •共阳极配置
