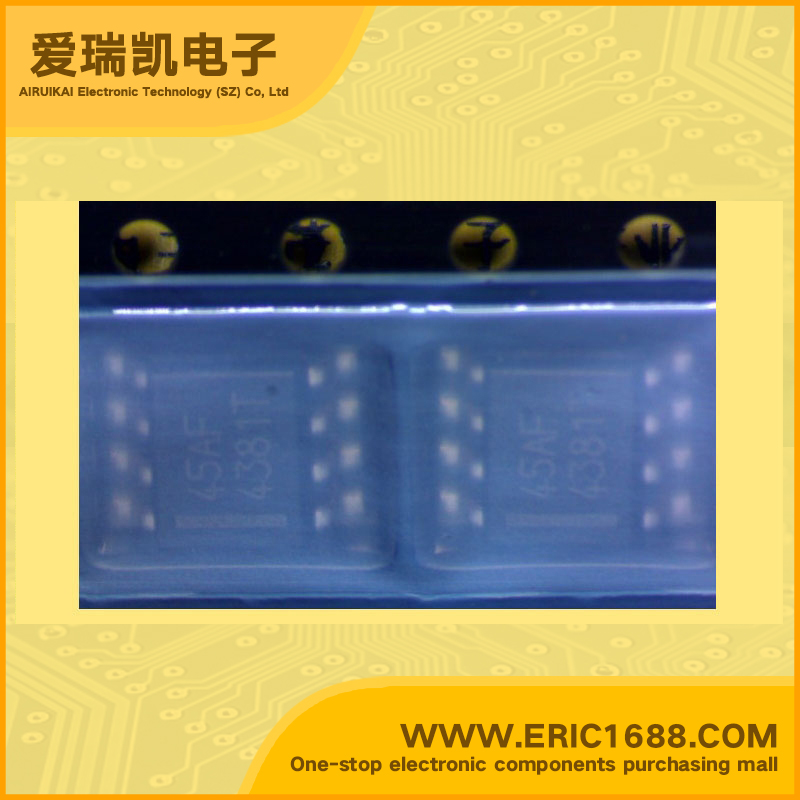

EEPROMs-serial memory AK93C45AF SOP8 marking 45AF
存储器格式 Format - Memory | EEPROMs - 串行 EEPROMs - Serial |
存储器类型 Memory Type | EEPROM |
存储容量 Memory Size | |
速度 Speed | |
接口 Interface | I²C,2 线串口 I²C, 2-Wire Serial |
电源电压 Voltage - Supply | 1.8 V ~ 5.5 V |
Description & Applications | The AK93C45A/55A/65A/75A is a 1024/2048/4096/8192-bit serial CMOS EEPROM divided into 64/128/256/512 registers of 16 bits each. The AK93C45A/55A/65A/75A has 4 instructions such as READ, WRITE, EWEN and EWDS. Those instructions control the AK93C45A/55A/65A/75A. The AK93C45A/55A/65A/75A can operate full function under wide operating voltage range from 1.8V to 5.5V. The charge up circuit is integrated for high voltage generation that is used for writeoperation. A serial interface of AK93C45A/55A/65A/75A, consisting of chip select (CS), serial clock (SK), datain (DI) and data-out (DO), can easily be controlled by popular microcontrollers or standard microprocessors. AK93C45A/55A/65A/75A takes in the write data from data input pin (DI) to a register synchronously with rising edge of input pulse of serial clock pin (SK). And at read operation, AK93C45A/55A/65A/75A takes out the read data from a register to data output pin (DO) synchronously with rising edge of SK. The DO pin is usually in high impedance state. The DO pin outputs "L" or "H" in case of data output or Busy/Ready signal output. ADVANCED CMOS EEPROM TECHNOLOGY READ/WRITE NON-VOLATILE MEMORY WIDE VCC OPERATION : VCC = 1.8V to 5.5V AK93C45A ・・1024 bits, 64 x 16 organization AK93C55A ・・2048 bits, 128 x 16 organization AK93C65A ・・4096 bits, 256 x 16 organization AK93C75A ・・8192 bits, 512 x 16 organization SERIAL INTERFACE - Interfaces with popular microcontrollers and standard microprocessors LOW POWER CONSUMPTION - 0.8µA Max. Standby High Reliability - Endurance : 100K cycles - Data Retention : 10 years Automatic address increment (READ) Automatic write cycle time-out with auto-ERASE Busy/Ready status signal Software controlled write protection IDEAL FOR LOW DENSITY DATA STORAGE - Low cost, space saving, 8-pin package (SOP, TSSOP) |
描述与应用 | 一个AK93C45A/55A/65A/75A1024/2048/4096/8192-bit串行CMOS EEPROM分为 64/128/256/512每个16位寄存器。有4条指令AK93C45A/55A/65A/75A如 读,写,EWEN和EWDS。这些指令控制AK93C45A/55A/65A/75A。 AK93C45A/55A/65A/75A可以操作的全功能的宽工作电压范围从1.8V下 5.5V。升压电路的电荷被集成为用于写入的高压产生操作。 流行的微控制器或标准的,可以很容易地控制一个串行接口,包括片选(CS),串行时钟(SK),数据输入(DI)和数据输出(DO),AK93C45A/55A/65A/75A 微处理器。 AK93C45A/55A/65A/75A需要写数据到一个数据输入引脚(DI) 串行时钟引脚(SK)的输入脉冲的上升沿同步。和在读操作中, AK93C45A/55A/65A/75A从寄存器读出的数据中取出数据输出引脚(DO) SK上升沿同步。 DO引脚通常是在高阻抗状态。 DO引脚输出“L”或“H”的情况下的数据输出 或忙/就绪信号输出。 先进的CMOS EEPROM技术 读/写非挥发性记忆体 宽VCC操作:VCC=1.8V至5.5V AK93C45A·1024位,64×16组织 AK93C55A·2048位,128×16组织 AK93C65A·4096位,256×16组织 AK93C75A·8192位,512×16组织 串行接口 - 流行的微控制器的接口和标准的微处理器 低功耗 - 0.8μAMAX。待机 高可靠性 - 耐力:100K周期 - 数据保存:10年 自动地址递增(读) 自动写周期超时自动擦除 忙/就绪状态信号 软件控制的写保护 非常适于低密度信息存储 - 成本低,节省空间,8引脚封装(SOP,TSSOP |
