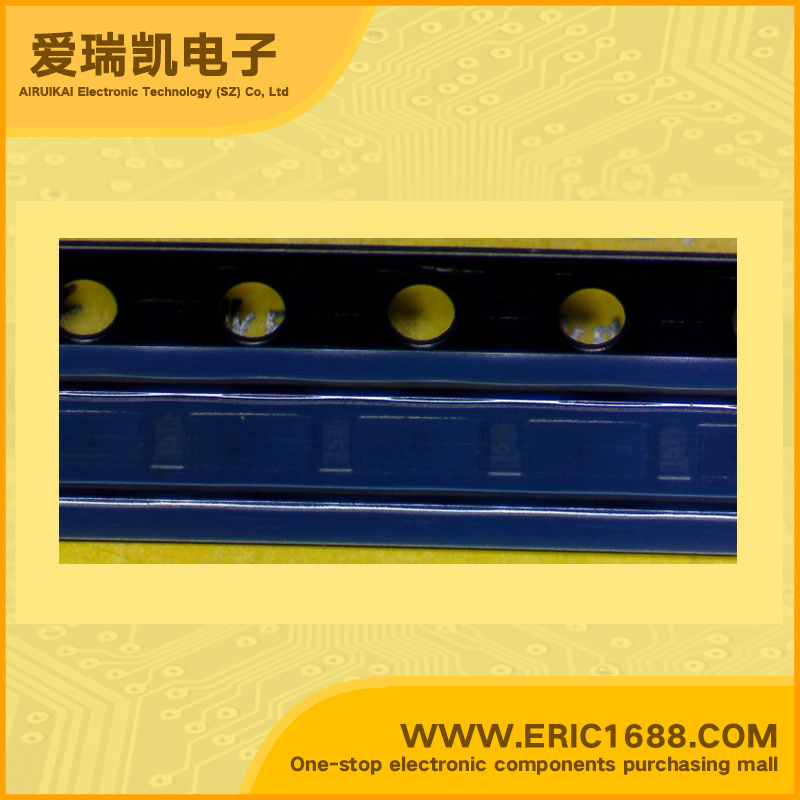

UCLAMP0501T.TCT TVS/ESD 5V 16A SLP1006 marking 5t
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 5V |
| 反向击穿电压VBR Breakdown Voltage | 6V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 240W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 16A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | Features: •1-Line ESD protection •Transient protection for data lines to IEC 61000-4-2 (ESD) 15kV (air), 8kV (contact) IEC 61000-4-4 (EFT) 40A (tp = 5/50ns) Cable Discharge Event (CDE) •Ultra-small SOD-523 package (1.7 x 0.9 x 0.7mm) •Protects one I/O or power line •Low clamping voltage •Working voltage: 5V •Low leakage current •Solid-state silicon-avalanche technology |
| 描述与应用 | 特点： •1线ESD保护 •瞬态保护的数据线 IEC61000-4-2（ESD）的15kV（空气），8kV（接触） IEC61000-4-4（EFT）40A（TP =5/50ns）电缆放电事件（CDE） •超小SOD-523封装（1.7×0.9×0.7毫米） •保护一个I / O或电源线 •低钳位电压 •工作电压：5V •低漏电流 •固态硅雪崩技术 |
