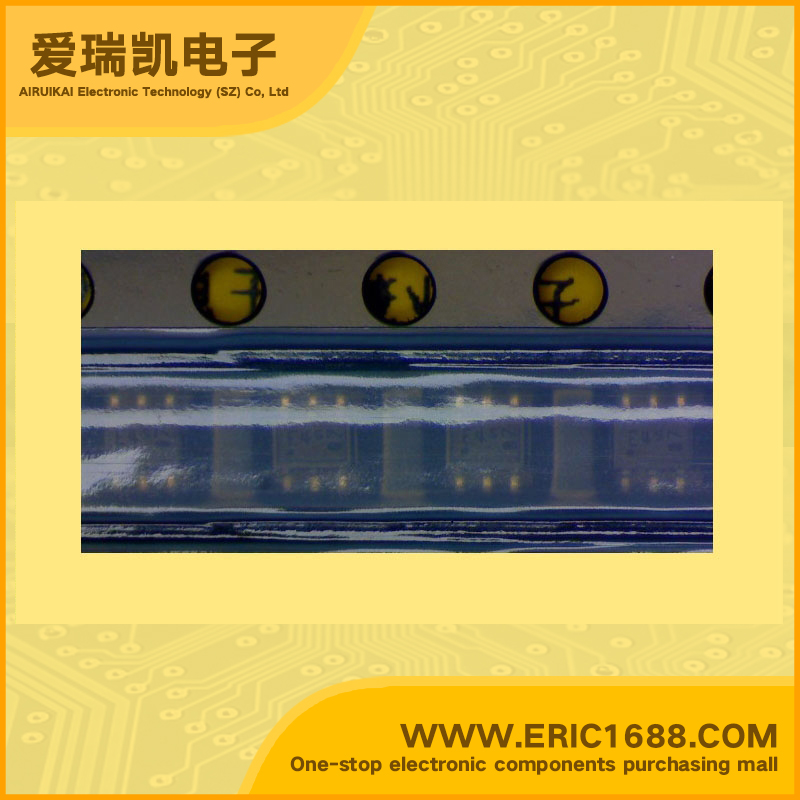

ESD5V0S4USE6327 TVS/ESD 10A SOT-363 marking E4

Hot selling goods

Product description
极性
Polarization
单向 Unidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
反向击穿电压VBR
Breakdown Voltage
6.7V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
130W
峰值脉冲电流IPPm
Peak Forward Surge Current
10A
额定耗散功率Pd
Power dissipation
Description & ApplicationsFeatures • Multi-Channel TVS Diode Array • ESD / transient protection of data and power lines in 3.3 V / 5 V application according to: IEC61000-4-2 (ESD): ± 30 KV (contact) IEC61000-4-4 (EFT): 80 A (5/50 ns) IEC61000-4-5 (Surge): 10 A (8/20 µs) • Working voltage: 5 V (5.3 V max.) • Low clamping voltage • Low reverse current < 5 µA • Pb-free (RoHS compliant) package • Qualified according AEC Q101 Applications • Uni or bi-directional operation possible (see application example page 5) • Mobile communication • Consumer products (STB, MP3, DVD, DSC...) • LCD displays, camera • Notebooks and desktop computers, peripherals
描述与应用特点 •多频道TVS二极管阵列 •ESD/瞬态保护    数据和电源线    在3.3 V / 5 V应用:    IEC61000-4-2(ESD):±30 KV(接触)    IEC61000-4-4(EFT):80(5/50纳秒)    IEC61000-4-5(浪涌):10 A(8/20微秒) •工作电压:5 V(最大5.3 V)。 •低钳位电压 •低反向电流<5μA •无铅封装(符合RoHS) •符合AEC Q101 应用 •单向或双向操作可能    (见应用实例第5页) •移动通信 •消费类产品(机顶盒,MP3,DVD,DSC) •液晶显示器,摄像头 •笔记本电脑和台式电脑,外设
