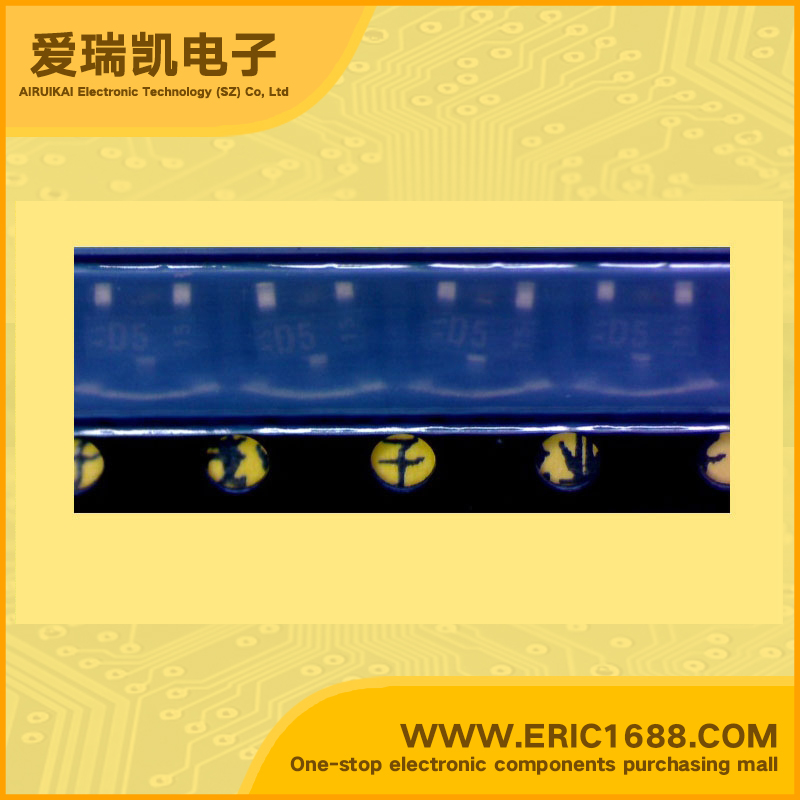

BAR64V-05-GS08 1 Pair Common Cathode PIN Doides 100V 100mA/0.1A SOT-23/SC59 D5 RF turning
| 反向电压VR Reverse Voltage | 100V |
| 平均正向整流电流IF Forward Current(If) | 100mA/0.1A |
| 二极管电容值CT Diode capacitance | 0.23pF |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | RF PIN Diode - Single in SOT-23 Description Characterized by low reverse Capacitance the PIN Diodes BAR64V-03 was designed for RF signal switching and tuning. As a function of the forward bias current the forward resistance (rf) can be adjusted over a wide range. A long carrier life time offers low signal distortion for signals over 10 MHz up to 3 GHz. Typical applications for this PIN Diodes are switches and attenuators in wireless, mobile and TVsystems. Features • High reverse Voltage • Small reverse capacitance • High breakdown voltage • Lead (Pb)-free component Applications For frequency up to 3 GHz RF-signal tuning Signal attenuator and switches Mobile, wireless and TV-Applications Mechanical Data |
| 描述与应用 | RF PIN二极管 - 单SOT-23 描述 特点是低反向电容PIN码 二极管BAR64V-03是专为RF信号 开关和调谐。作为功能的正向 偏置电流的正向电阻（射频）可以是 在很宽的范围内调整。长载波生活时间 提供超过10兆赫的低信号失真信号 到3 GHz。这个PIN二极管的典型应用 开关和衰减器在无线，移动和TVsystems。 特点 •高反向电压 •小反向电容 •高击穿电压 •铅（Pb）免费组件 应用 对于频率高达3 GHz RF信号调谐 信号的衰减器和开关 移动，无线和电视应用 机械数据 |
