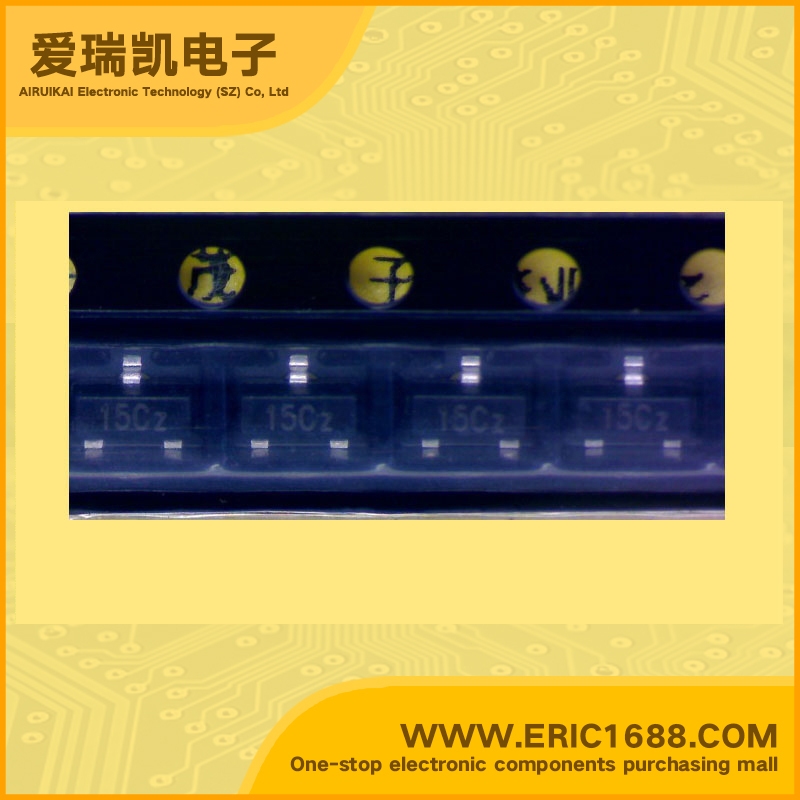

TVS2315GP TVS/ESD 15V 1.0A SOT-23-15V marking 15C
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 15V |
| 反向击穿电压VBR Breakdown Voltage | 16.7V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 300W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 1.0A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | Features: •TRANSIENT VOLTAGE SUPPRESSOR ARRAY SERIES •Unidirectional or Bidirectional •300W peak pulse power dissipation rating at tp= 8X20uSec •Low leakage current •High temperature soldering guaranteed :260C/10 seconds at terminals |
| 描述与应用 | 特点： •瞬态电压抑制器阵列系列 •单向或双向 •300W峰值脉冲功耗评级在tp=8X20uSec的 •低漏电流 •高温焊接保证：260C/10的在码头秒 |
