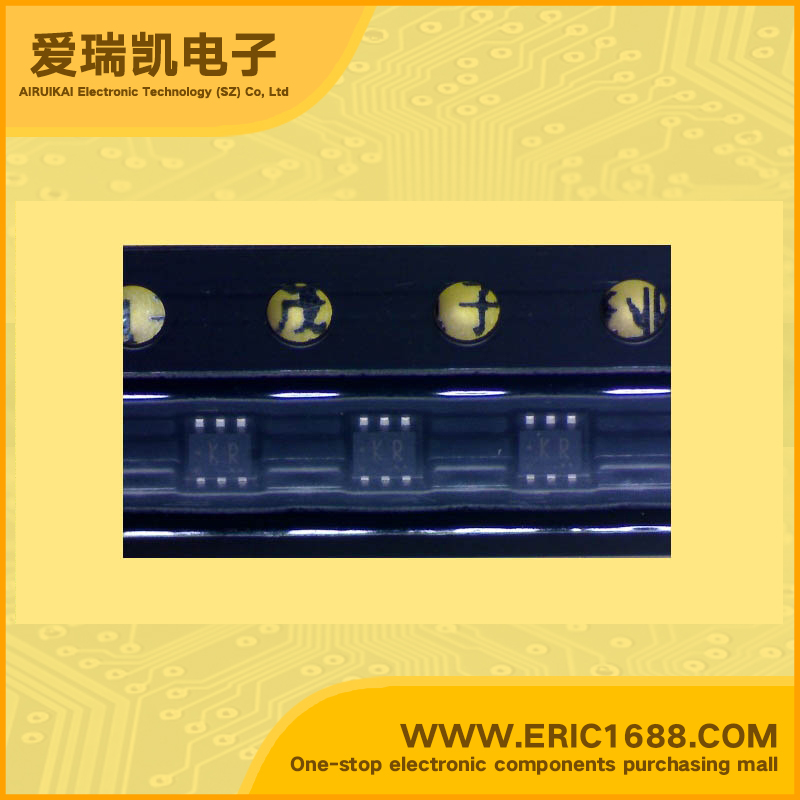

SSM6J206FE MOSFET P-Channel -20V -2A 320mohm SOT-563 marking KR high-speed switch power management 1.8V drive low on-resistance
| 最大源漏极电压Vds Drain-Source Voltage | -20V |
| 最大栅源极电压Vgs(±) Gate-Source Voltage | 8V |
| 最大漏极电流Id Drain Current | -2A |
| 源漏极导通电阻Rds Drain-Source On-State Resistance | 320mΩ@ VGS = -1.8V, ID = -200mA |
| 开启电压Vgs（th） Gate-Source Threshold Voltage | -0.3~-1.0V |
| 耗散功率Pd Power Dissipation | 500mW/0.5W |
| Description & Applications | TOSHIBA Field-Effect Transistor Silicon P-Channel MOS Type High-Speed Switching Applications Power Management Switch Applications • 1.8V drive • P-ch 2-in-1 • Low ON-resistance:Ron = 320 mΩ (max) (@VGS = -1.8 V) Ron = 186 mΩ (max) (@VGS = -2.5 V) Ron = 130 mΩ (max) (@VGS = -4.0 V) |
| 描述与应用 | 东芝场效应晶体管的硅P沟道MOS类型 高速开关应用 电源管理开关应用 •1.8V驱动 •P沟道2合1 •低导通电阻:Ron = 320 mΩ (max) (@VGS = -1.8 V) Ron = 186 mΩ (max) (@VGS = -2.5 V) Ron = 130 mΩ (max) (@VGS = -4.0 V) |
