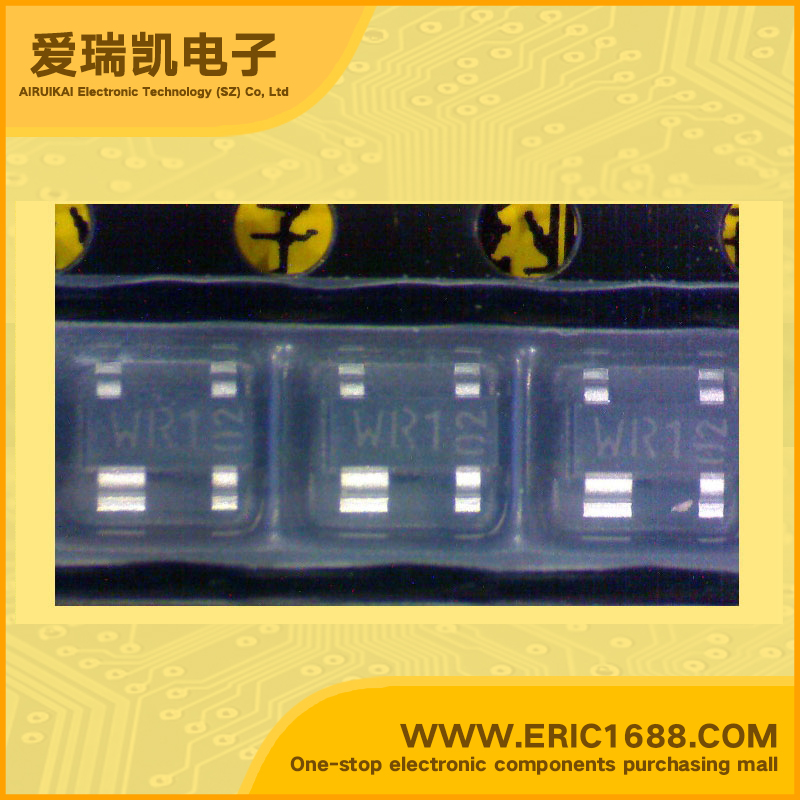

PJSR05T/R TVS/ESD 5V 5A SOT-143 marking WR1
| 极性 Polarization | 双向 Bidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 5V |
| 反向击穿电压VBR Breakdown Voltage | 6.2V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 350W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 5A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | Features •low capacity tvs and diode array •Peak power dissipation of 350W •Maximum capacitance of 1.2pF @ 0dc 1MHz Line-to-Ground •Maximum leakage current of 1.0 uA @ VRWM •New SMT package SOT-543 •IEC61000-4-2 compliant 15 kV Air,8kV contact •Lead free in comply with EU RoHS 2002/95/EC directives •Green molding compound as per IEC61249 Std.(Halogen Free) |
| 描述与应用 | 特性 •低容量TVS二极管阵列 •峰值耗散功率350W •最大1.2PF@0DC1MHz的线对接地电容 •最大漏电电流为1.0微安@ VRWM •新SMT封装SOT-543 •IEC61000-4-2标准15千伏空气，8kV接触 •无铅符合欧盟RoHS指令2002/95/EC指令 •绿色模塑化合物（无卤）每IEC61249标准 |
