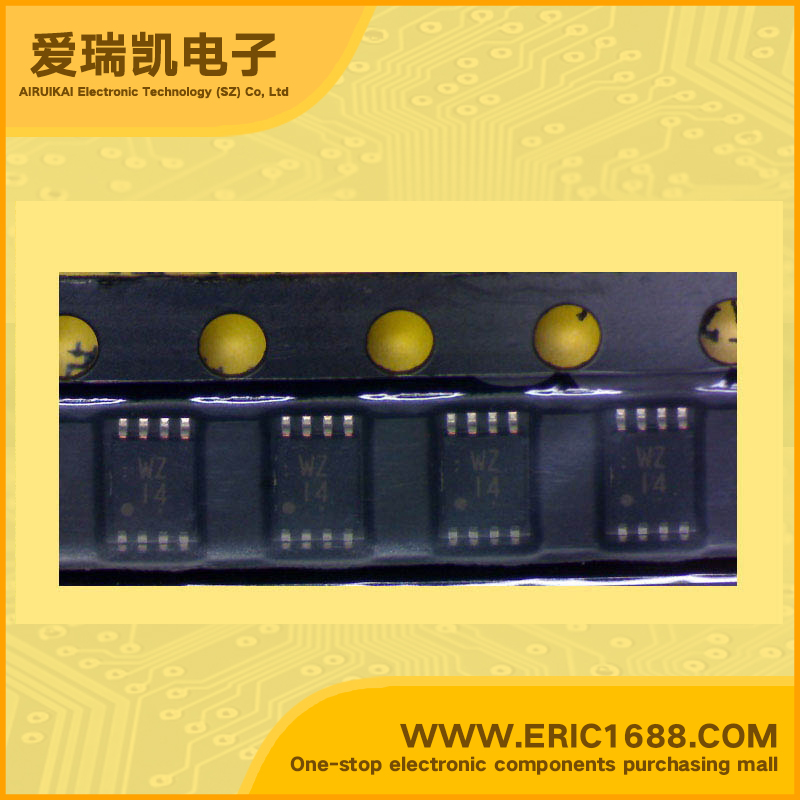

Integrated Circuit(IC) Inverting Schmitt trigger TC7WZ14FK US8 marking WZ14

Hot selling goods

Product description
逻辑类型
Logic Type
反相施密特触发器 Inverting Schmitt trigger
电路数
Number of Circuits
1
输入数
Number of Inputs
1
电源电压Vcc
Voltage - Supply
1.65V~5.5V
静态电流Iq
Current - Quiescent (Max)
1µA
输出高,低电平电流
Current - Output High, Low
-24mA,24mA
低逻辑电平
Logic Level - Low
0.25v~0.3v
高逻辑电平
Logic Level - High
0.7v~0.75v
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
3.7ns @ 5V,50pF
Description & ApplicationsTriple Schmitt Inverter ;High output current : ±24 mA (min) at VCC = 3 V • Super high speed operation : tpd = 3.7 ns (typ.) at VCC = 5 V, 50 pF • Operation voltage range : VCC (opr) = 1.65 to 5.5 V • 5.5-V tolerant inputs • 5.5-V power down protection outputs • Matches the performance of TC74LCX series when operated at 3.3-V VCC
描述与应用三施密特逆变器;高输出电流:±24 mA(分钟)在VCC=3 V •超高速运转:TPD =3.7 ns(典型值) 在VCC = 5 V,50 pF的 •工作电压范围:VCC(OPR)= 1.65至5.5 V •5.5-V宽容输入 •5.5-V断电保护输出 •操作时的性能相匹配的TC74LCX系列 3.3-V的VCC
