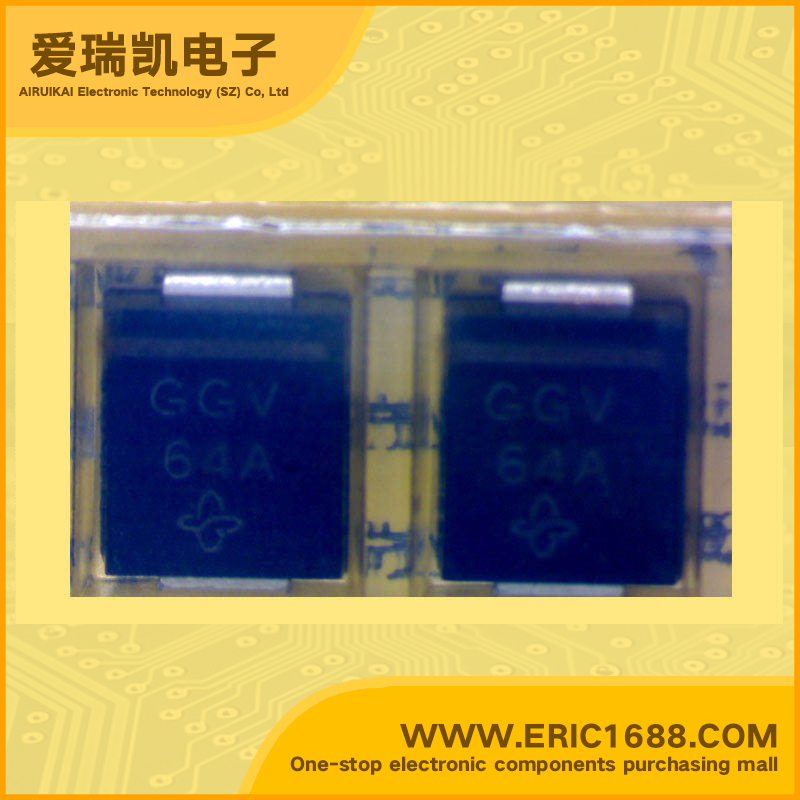

SMCJ85A/57T TVS/ESD 85V 10.9A DO-214AB/SMC-85V marking GGV

Hot selling goods

Product description
极性
Polarization
单向 Unidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
85V
反向击穿电压VBR
Breakdown Voltage
99.2V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
1500W
峰值脉冲电流IPPm
Peak Forward Surge Current
10.9A
额定耗散功率Pd
Power dissipation
Description & ApplicationsFEATURES •Transient Voltage Suppressors •Glass passivated junction. •1500 W Peak Pulse Power capability on 10/1000 µs waveform. •Excellent clamping capability. •Low incremental surge resistance. •Fast response time; typically less than 1.0 ps from 0 volts to BV for unidirectional and 5.0 ns for bidirectional. •Typical less than 1.0 µA above 10V. •UL certified, UL #E210467.
描述与应用特点 •瞬态电压抑制器 •玻璃钝化结。 •1500 W峰值脉冲功率10/1000微秒的能力波形。 •出色的钳位能力。 •低增量浪涌电阻。 •快速响应时间通常小于1.0 ps的从0伏BV双向单向和5.0 ns的。 •典型10V以上小于1.0μA。 •UL认证,UL E210467。
