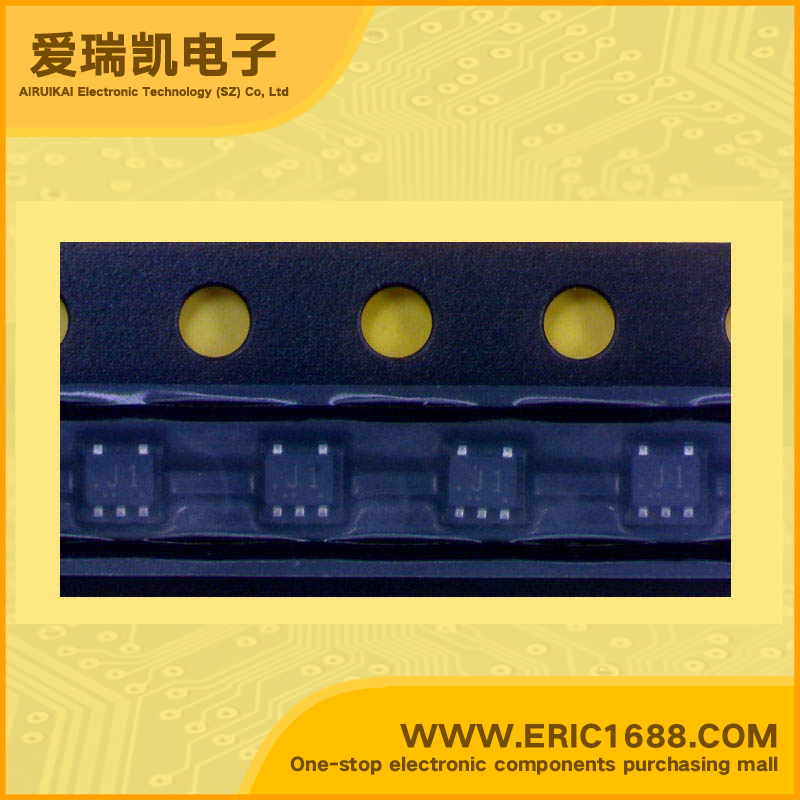

Integrated Circuit（IC） NAND gate TC7SZ00FE SOT-553/ESV marking J1
| 逻辑类型 Logic Type | 与非门 NAND Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 1.65v~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 2µA |
| 输出高，低电平电流 Current - Output High, Low | -24mA.24mA |
| 低逻辑电平 Logic Level - Low | 0.25v~0.3v |
| 高逻辑电平 Logic Level - High | 0.7v~0.75v |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 2.4ns @ 5V，50pF |
| Description & Applications | 2 Input NAND Gate ；High output current : ±24 mA (min) at VCC = 3 V • Super high speed operation : tpd = 2.4 ns (typ.) at VCC = 5 V, 50pF • Operating voltage range : VCC = 1.65 to 5.5 V • 5.5-V tolerant inputs • 5.5-V power down protection output • Matches the performance of TC74LCX series when operated at 3.3- V VCC |
| 描述与应用 | 2输入与非门;高输出电流：±24 mA（分钟）在VCC=3 V •超高速运转：TPD =2.4 ns（典型值） 在VCC= 5 V，50PF •工作电压范围：VCC= 1.65至5.5 V •5.5-V宽容输入 •5.5-V断电保护输出 •操作时的性能相匹配的TC74LCX系列 3.3-V的VCC |
