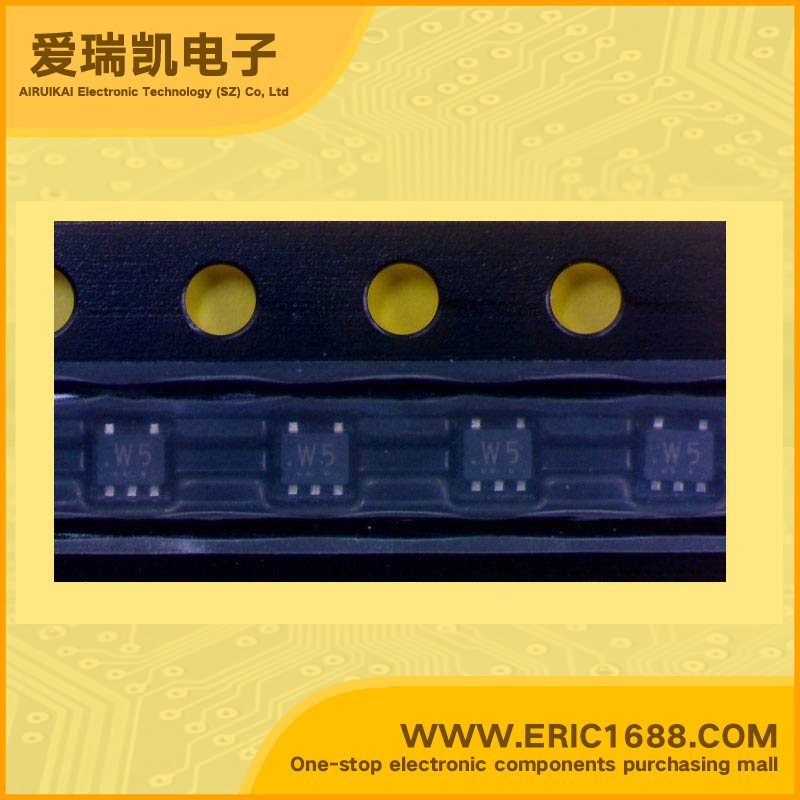

Integrated Circuit(IC) inverter TC7SG04FE SOT-553/ESV marking W5

Hot selling goods

Product description
逻辑类型
Logic Type
反相器 Inverter
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
0.9V~3.6V
静态电流Iq
Current - Quiescent (Max)
10uA
输出高,低电平电流
Current - Output High, Low
-8mA,8mA
低逻辑电平
Logic Level - Low
0.7V~0.8V
高逻辑电平
Logic Level - High
1.7V~2v
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
21ns @3.3V ,15pF
Description & ApplicationsInverter ;High-level output current: IOH/IOL = ±8 mA (min) at VCC = 3.0 V • High-speed operation: tpd = 2.3 ns (typ.) at VCC = 3.3 V,15pF • Operating voltage range: VCC = 0.9~3.6 V • 5.5-V tolerant input. • 3.6-V power down protection output.
描述与应用逆变器;高电平输出电流:IOH/ IOL=±8 mA(分钟)                                                           在VCC= 3.0 V •高速操作:TPD =2.3 ns(典型值)                                                           在VCC =3.3 V,15PF •工作电压范围:VCC= 0.9〜3.6 V •5.5-V宽容输入。 •3.6-V断电保护输出。
