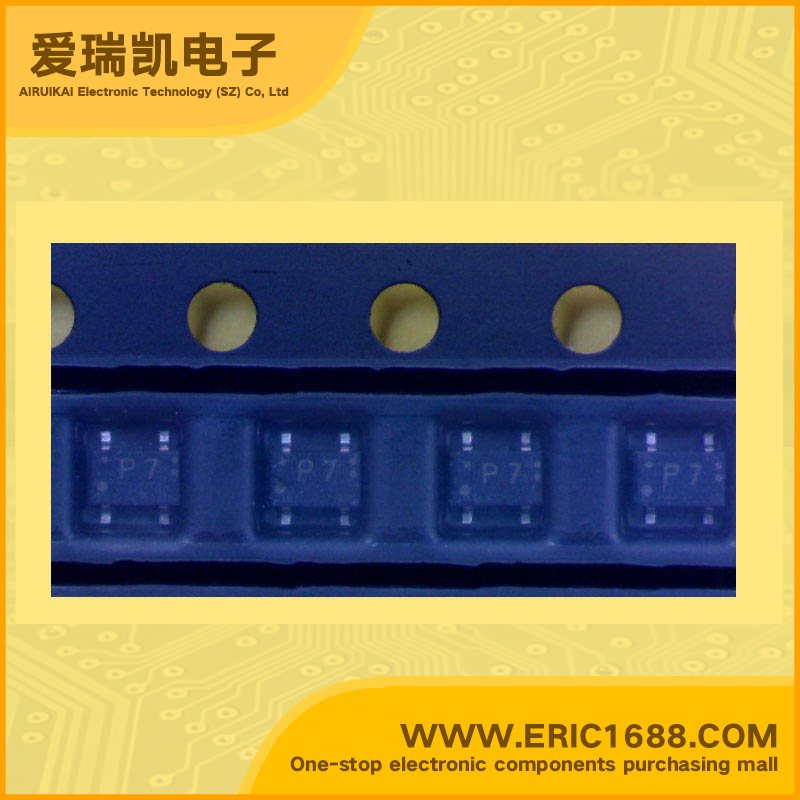

MT4S101U NPN Transistors(BJT) 6V 10mA 17GHz~21GHz 200~400 SOT-343/USQ marking P7 UHFlow noise amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 6V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 3V |
| 集电极连续输出电流IC Collector Current(IC) | 10mA |
| 截止频率fT Transtion Frequency(fT) | 17GHz~21GHz |
| 直流电流增益hFE DC Current Gain(hFE) | 200~400 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | |
| 耗散功率Pc Power Dissipation | 30mW |
| Description & Applications | • UHF Low Noise Amplifier Application • Low Noise Figure :NF=0.8dB (@f=2GHz) • High Gain:|S21e| 2 =16.0dB (@f=2GHz) |
| 描述与应用 | •UHF低噪声放大器的应用 •低噪声系数：NF=0.8分贝（@ F =2GHz的） •高增益：S21E| 2 =16.0分贝（F =2GHz的） |
