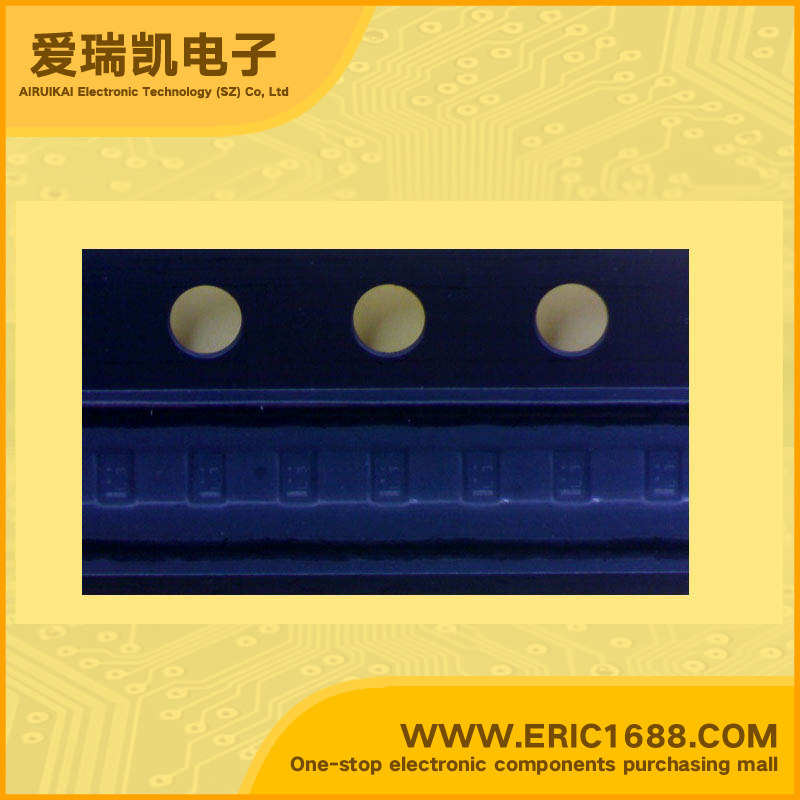

RN1104CT NPN Bipolar Digital Transistor (BRT) 20V 50mA 47k 47k gain120 SOT-883/CST3/0402 marking L3 switch inverting circuit interface circuit and driver circuit
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 20V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 20V |
| 集电极连续输出电流IC Collector Current(IC) | 50mA |
| 基极输入电阻R1 Input Resistance(R1) | 47KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 47KΩ/Ohm |
| 电阻比(R1/R2) Resistance Ratio | 1 |
| 直流电流增益hFE DC Current Gain(hFE) | 120 |
| 截止频率fT Transtion Frequency(fT) | |
| 耗散功率Pc Power Dissipation | 0.05W/50mW |
| Description & Applications | Features Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications Incorporating a bias resistor into the transistor reduces the number of parts, so enabling the manufacture of ever more compact equipment and lowering assembly cost. Complementary to the RN2104CT |
| 描述与应用 | 特性 开关，逆变电路，接口电路和驱动器电路应用 结合到晶体管偏置电阻器减少部件的数量，所以能够制造比更紧凑设备并降低装配成本。 对管是RN2104CT |
