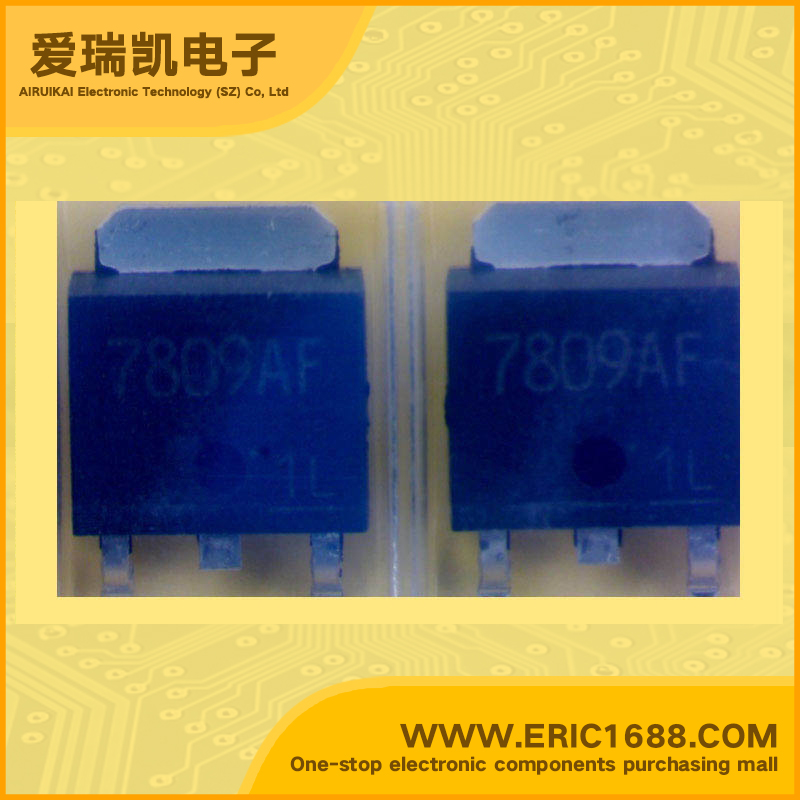

TA7809AF LDO Voltage Regulator 9V 2V TO-252/PW-MOLD marking 7809AF Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
20V
输出电压VOUT
Voltage - Output
9V
输出电流Io
Current - Output
1A
最大压降VDO
Voltage - Dropout
2V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
无 No
最大耗散功率Pd
Power dissipation
1W
Description & ApplicationsTOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic. * 1 A Three-Terminal Positive Voltage Regulator * The TA78***AF series consists of fixed-positive-output voltage regulator ICs capable of sourcing current of up to 1 A. * Maximum output current: 1 A * Output voltage: 3.3 / 4.0 / 5.0 / 7.0 / 8.0 / 9.0 V * Output voltage accuracy: VOUT ± 4% (@Tj = 25°C) * Protection function: overcurrent /overheating /safe operating area(SOA)
描述与应用东芝双极型线性集成电路硅单片。 *1A三端的正电压稳压器 * TA78***的AF系列包括固定正输出电压稳压器IC能够采购电流高达1 A *最大输出电流:1 A *输出电压:3.3 /4.0/5.0 /7.0/ 8.0/9.0 V。 *输出电压精度:VOUT±4%(@ TJ= 25°C) *保护功能:过流/过热/安全工作区(SOA)
