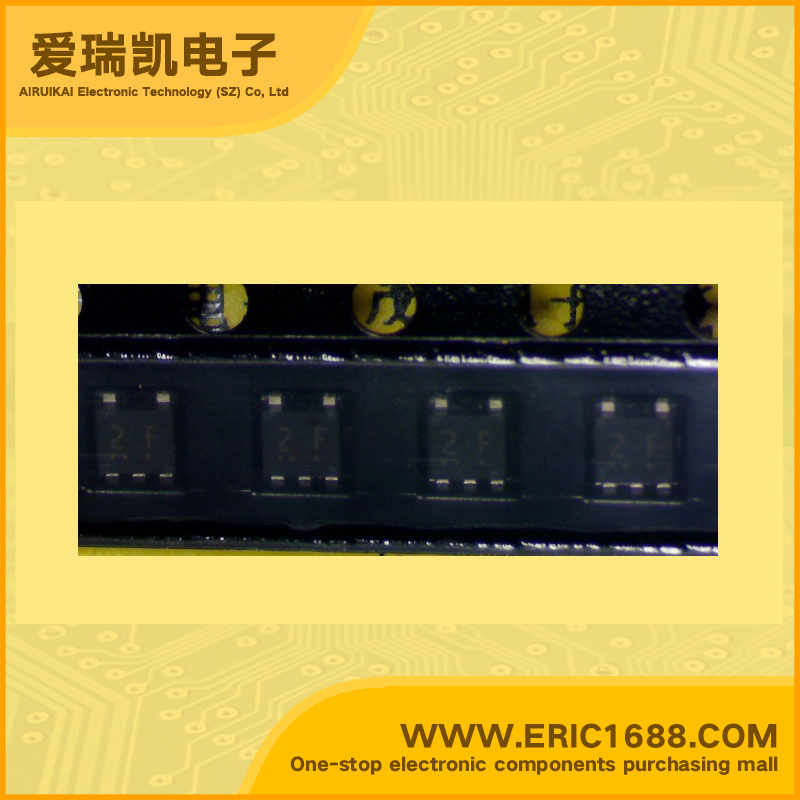

TA76432FT Voltage Reference Power Management IC 1.26V~19V SOT-353/UFV/SC70-5 marking 2F Adjustable High-Precision shunt regulator
| 参考类型 Reference Type | 旁路，可调节，精度 Shunt, Adjustable, Precision |
| 输出电压Vo Voltage - Output | 1.26V~19V |
| 误差 Tolerance | ±1.4% |
| 温度系数 Temperature Coefficient | 30ppm/°C |
| 输入电压 Voltage - Input | 1.26V~19V |
| 阴极电流 Current - Cathode | 500µA |
| 输出电流IOUT Current - Output | 15mA |
| Description & Applications | FEATURES • TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic • 1.26-V Adjustable High-Precision Shunt Regulators • Precision reference voltage: VREF = 1.26 V ± 1.4% (Ta = 25°C) • Small temperature coefficient: |αVREF| = 30 ppm/°C (typ.) • Adjustable output voltage: VREF ≤ VOUT ≤ 19 V • Minimum cathode current for regulation: Ikmin = 0.5 mA (max.) • Operating temperature: Ta = −40~85°C • Packages: UFV (TA76432FT), SMV (TA76432FC), PW-MINI (TA76432F/FR) and TO-92MOD (TA76432S) • The TA76432FT is housed in an ultra-thin UFV package. (thickness: 0.7 mm typ.) |
| 描述与应用 | 特点 •东芝双极型线性集成电路硅单片 •1.26-V可调高精密并联稳压器 •精密基准电压VREF=1.26 V±1.4％（TA= 25°C） •温度系数小：|αVREF|= 30 PPM /°C（典型值） •可调输出电压VREF≤VOUT≤19 V •最小阴极电流调节：Ikmin=0.5 mA（最大值） •工作温度：钽= -40〜85°C •封装：（TA76432FT UFV），SMV（TA76432FC）， PW-MINI（TA76432F/FR） TO-92MOD（TA76432S） •坐落在TA76432FT超薄UFV封装。 （厚度：0.7 mm典型值）。 |
