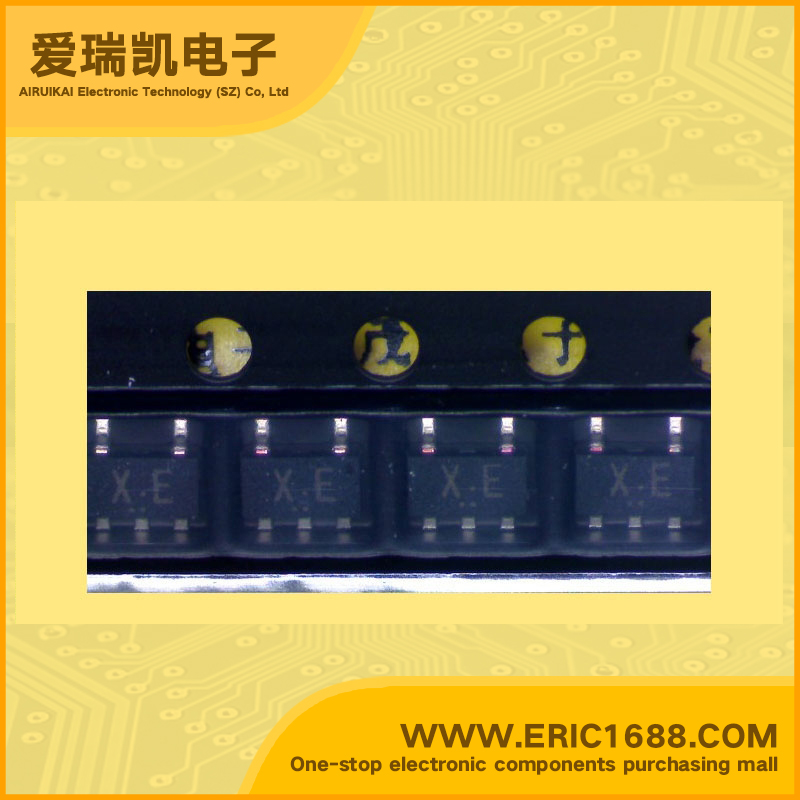

RN1505 Double Bias Resister NPN 50V 0.1A R1=2.2KΩ R2=47KΩ 250MHZ SOT153 MARKING XE
|
V(BR) CBO Collector-Base Voltage |
50V |
|
V(BR) CEO Collector-Emitter Voltage |
50V |
| Collector Current(IC) | 0.1A |
| Base-Emitter Input Resistance Ratio (R1/R2) | 2.2KΩ/47KΩ=0.0468 |
| DC Current Gain(hFE) | 80 |
| Transtion Frequency(fT) | 250MHZ |
| Power Dissipation （Pd） | 0.3W |
| Description & Applications | * Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications
* Including two devices in SMV (super mini type with 5 leads)
* With built-in bias resistors
* Simplify circuit design
* Reduce a quantity of parts and manufacturing process
|
| Technical Documentation Download | Read Online |
