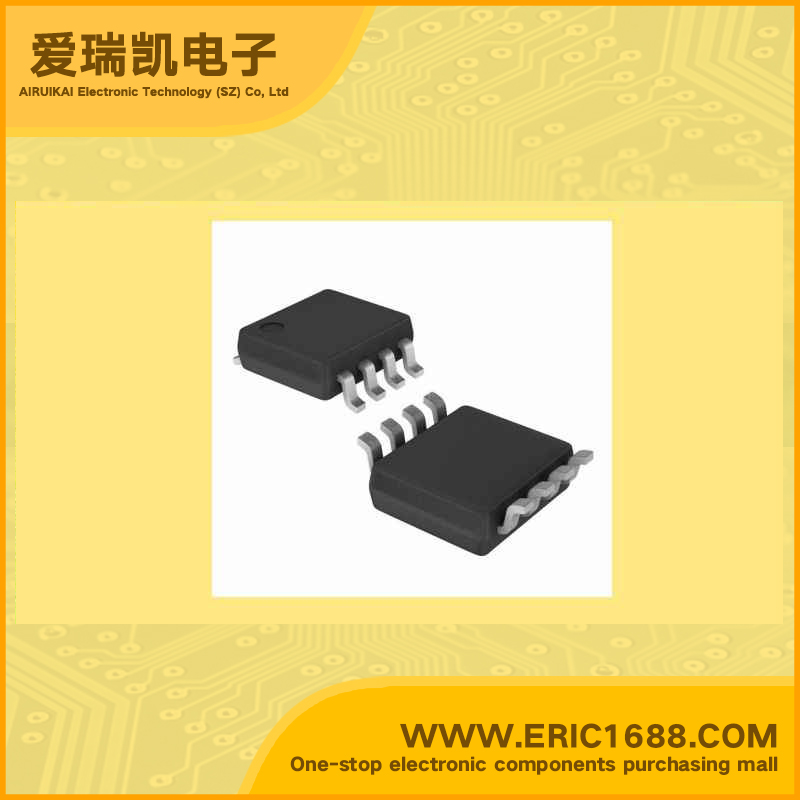

Integrated Circuit（IC） analog switch 74LVC2G66DC SOT-383 marking V66
| 开关配置 Circuit | 2*单刀单掷 2*SPST |
| 导通电阻 On-State Resistance | 10Ω/Ohm |
| 电源电压 Voltage - Supply | 1.65V~5.5V |
| Description & Applications | Bilateral switch low-power, low-voltage, high-speed Si-gate CMOS device.Each switch has two input/output terminals (nY and nZ) and an active HIGH enable input (nE). When nE is LOW, the analog switch is turned off. Schmitt trigger action at the enable inputs makes the circuit tolerant of slower input rise and fall times across the entire VCC range from 1.65 V to 5.5 V Wide supply voltage range from 1.65 V to 5.5 V Switch current capability of 32 mA High noise immunity CMOS low power consumption TTL interface compatibility at 3.3 V Latch-up performance meets requirements of JESD78 Class I ESD protection: HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V Enable input accepts voltages up to 5.5 V Multiple package options Specified from −40 °C to +85 °C and −40 °C to +125 °C |
| 描述与应用 | 双边开关 低功耗，低电压，高速硅栅CMOS器件。 每 开关有两个输入/输出端子（NY和NZ）和主动高启动输入（NE）。 当网元为低时，模拟开关是关闭的。 在使能输入施密特触发动作使电路宽容输入上升较慢 和下降时间在整个VCC范围从1.65 V至5.5 V。从1.65 V至5.5 V的宽电源电压范围 高抗干扰CMOS低功耗 在3.3 V TTL接口的兼容性 闭锁性能符合JESD78类的要求 ESD保护： HBM JESD22-A114F超过2000 V MM JESD22-A115-A超过200 V 允许接受输入电压高达5.5 V 多种封装选项 从-40°C至+85°C和-40°C至+125°C |
