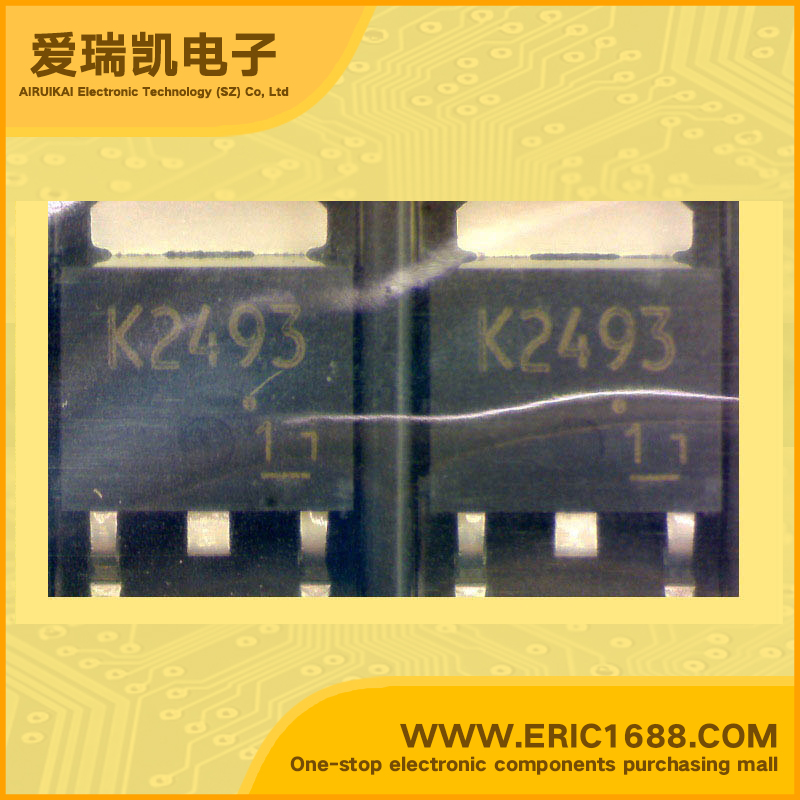

2SK2493 N-channel MOS 16V 5A TO252 代码 K2493 Chopper Regulator and DC?DC Converter Applications
| 最大源漏极电压Vds Drain-Source Voltage |
16V |
| 最大栅源极电压Vgs(±) Gate-Source Voltage |
±8V |
| 最大漏极电流Id Drain Current |
5A |
| 源漏极导通电阻Rds Drain-Source On-State Resistance |
0.08Ω~0.12Ω @VGS=2.5V,ID=2.5A |
| 开启电压Vgs（th） Gate-Source Threshold Voltage |
Vth = 0.5 to 1.1 V (VDS = 10 V, ID = 1 mA) |
| 耗散功率Pd Power Dissipation |
20W |
| Description & Applications | TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π−MOSV). Chopper Regulator and DC−DC Converter Applications. * 2.5-V gate drive. * Low drain−source ON resistance : RDS (ON) = 0.08 mΩ (typ.). * High forward transfer admittance : |Yfs| = 8.0 S (typ.). * Low leakage current : IDSS = 100 μA (max) (VDS = 16 V). * Enhancement mode : Vth = 0.5 to 1.1 V (VDS = 10 V, ID = 1 mA). |
| 描述与应用 | 东芝场效应晶体管的硅N沟道MOS型（π-MOSV）。 斩波稳压器和DC-DC转换器应用。 *2.5-V栅极驱动。 *低漏源导通电阻RDS（ON）= 0.08mΩ（典型值）。 *较强的正向转移导纳：YFS|=8.0Ş（典型值）。 *低漏电流IDSS= 100μA（最大值）（VDS=16 V）。 *增强模式：VTH =0.5至1.1 V（VDS=10V，ID= 1毫安）。 |
