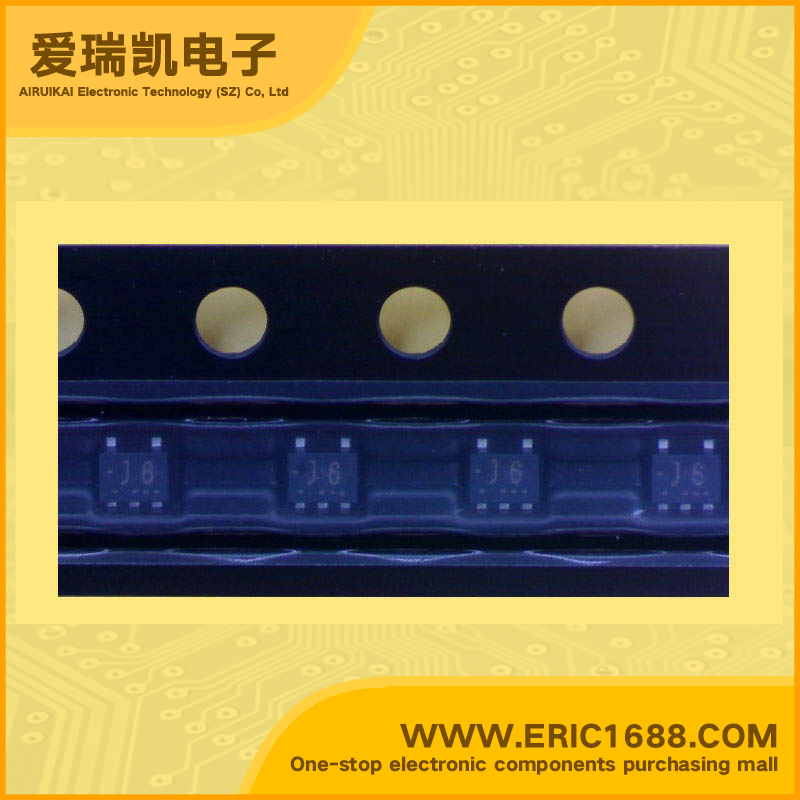

TC7SZU04FE Integrated Circuits (ICs)> Logic-Gates and Inverters IC INVERTER 1CH 1-INP ESV
| 逻辑类型 Logic Type |
反相器 Inverter |
| 电路数 Number of Circuits |
1 |
| 输入数 Number of Inputs |
1 |
| 电源电压Vcc Voltage - Supply |
1.65V~5.5V |
| 静态电流Iq Current - Quiescent (Max) |
1µA |
| 输出高，低电平电流 Current - Output High, Low |
-32mA,32mA |
| 低逻辑电平 Logic Level - Low |
0.15v~0.2v |
| 高逻辑电平 Logic Level - High |
0.8v~0.85v |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL |
5nS @ 4.5v~5V，50pF |
| Description & Applications | Inverter (Un-Buffer) ；High output drive: ±16 mA (min) at VCC = 4.5 V • Low quiescent power: ICC = 2 μA (max) at VCC = 5.5 V, Ta = 25°C • Operation voltage range: VCC (opr) = 1.8~5.5 V • 5.5-V tolerant input |
| 描述与应用 | 逆变器（非缓冲区）;高输出驱动器：±16 mA（分钟）在VCC =4.5 V •低静态功耗：ICC= 2μA（最大值） 在VCC =5.5 V，大= 25°C •工作电压范围：VCC（OPR） =1.8〜5.5 V •5.5-V宽容输入 |
