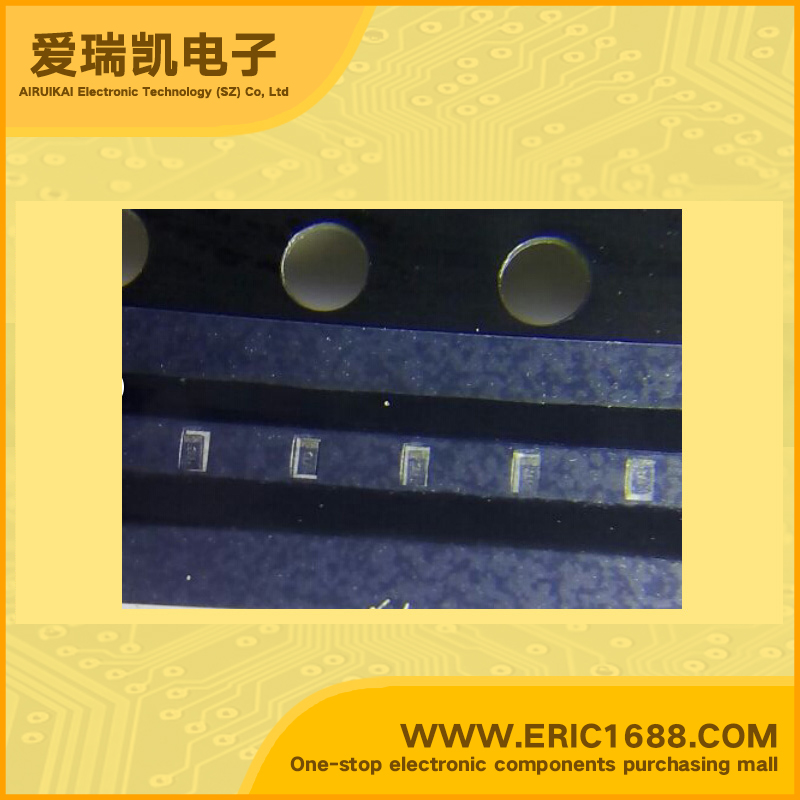

ESD8V0R1B-02LSE6327 Bi-directional Low Capacitance TVS Diode TSSLP-2-1 MARKING E

Hot selling goods

Product description
Polarization  Bi-directional
Reverse Standoff Voltage (VRWM)  8V
Breakdown Voltage (VBR)  8.5V
Peak Pulse Power Dissipation (PPPM)
Peak Forward Surge Current (IPPM)  1A
Power dissipation (Pd)
Description & Applications Bi-directional Low Capacitance TVS Diode ESD / transient protection of high-speed  data lines in 3.3 / 5 / 12 V applications  according to: IEC61000-4-2 (ESD): ±18 kV (air) ±15 kV (contact)IEC61000-4-4 (EFT): 40 A (5 / 50 ns)Extremely small form factor down to 0.62 x 0.32 x 0.31 mm³ (0201)Max. working voltage: −8 / +14 VVery low reverse current < 1 nA typ. Very low series inductance down to 0.2 nH typ.Low capacitance of 4 pF typ.Pb-free (RoHS compliant) package Qualified according AEC Q101ApplicationsUSB 2.0, 10/100 Ethernet, Firewire, DVI Mobile communicationConsumer products (STB, MP3, DVD, DSC...) LCD displays, camera Notebooks and destop computers, peripherals
Technical Documentation Download Read Online
