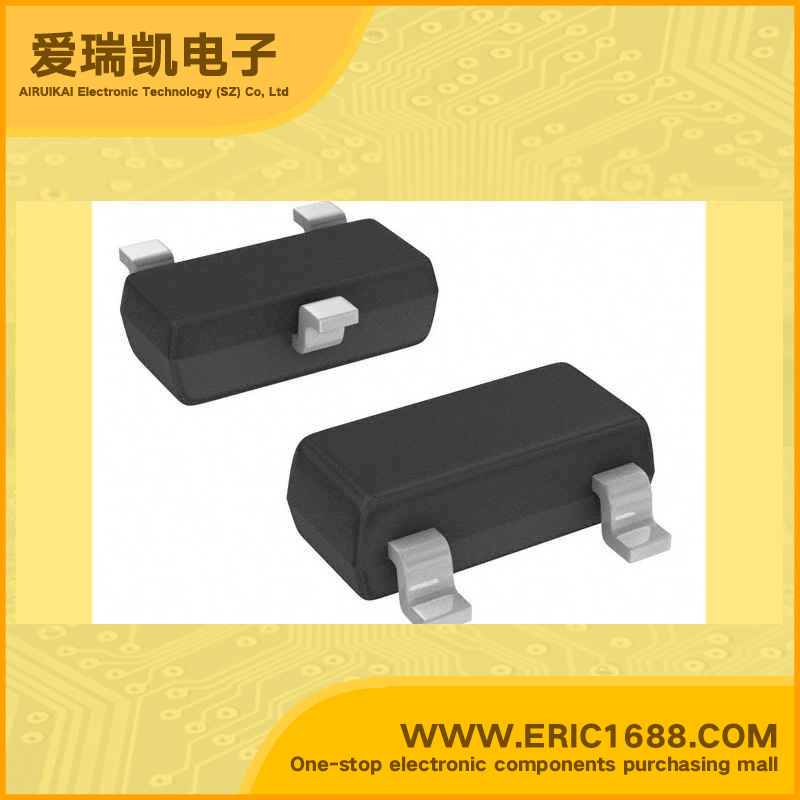

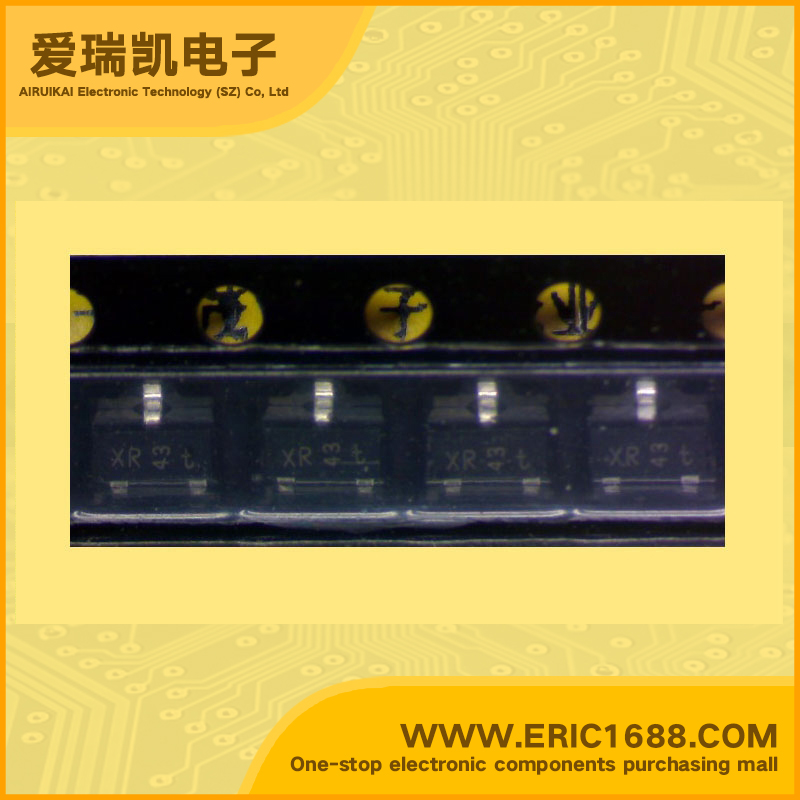

2PD602AR NPN Transistors(BJT) 60V 500mA/0.5A 160MHz 120~240 600mV/0.6V SOT-23/SC-59 marking XR switch amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
60V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
50V |
| 集电极连续输出电流IC Collector Current(IC) |
500mA/0.5A |
| 截止频率fT Transtion Frequency(fT) |
160MHz |
| 直流电流增益hFE DC Current Gain(hFE) |
120~240 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage |
600mV/0.6V |
| 耗散功率Pc Power Dissipation |
250mW/0.25W |
| Description & Applications | NPN general purpose transistor FEATURES • High current • Low voltage APPLICATIONS • General purpose switching and amplification. |
| 描述与应用 | NPN通用晶体管 特点 •高电流 •低电压 应用 •通用开关和放大。 |
