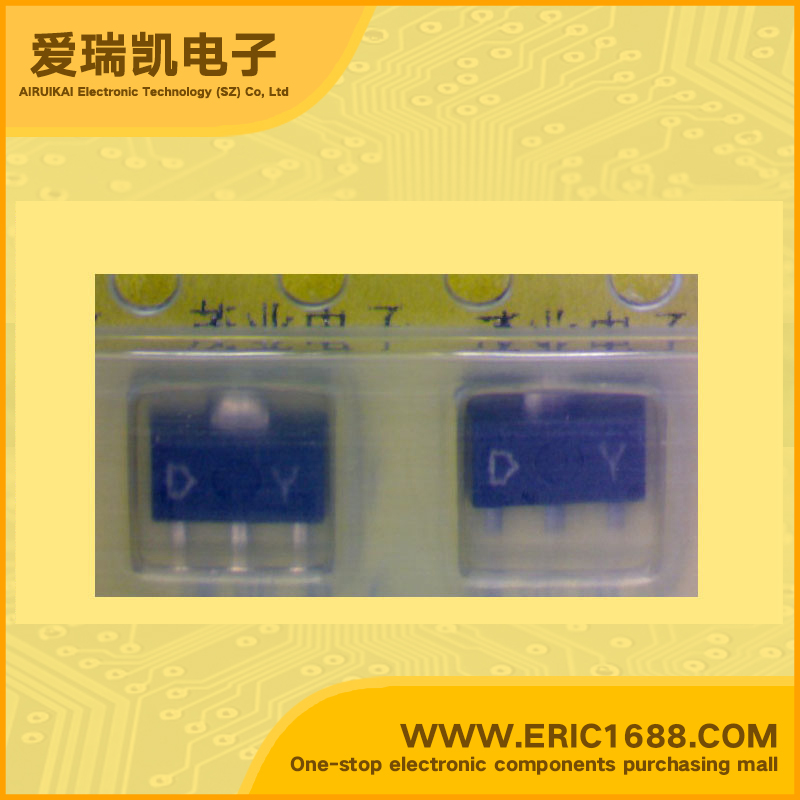

2SA1201 PNP transistors(BJT) -120V -800mA/-0.8A 120MHz 120~240 -1000mV/-1V SOT-89/SC-62 marking DY voltage/power amplifier

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
-120V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
-120V
集电极连续输出电流IC
Collector Current(IC)
-800mA/-0.8A
截止频率fT
Transtion Frequency(fT)
120MHz
直流电流增益hFE
DC Current Gain(hFE)
120~240
管压降VCE(sat)
Collector-Emitter SaturationVoltage
-1000mV/-1V
耗散功率Pc
PoWer Dissipation
500mW/0.5W
Description & Applications Voltage Amplifier Applications Power Amplifier Applications • High voltage: VCEO = −120 V • High transition frequency: fT = 120 MHz (typ.) • Small flat package • PC = 1 to 2 W (mounted on a ceramic substrate) • Complementary to 2SC2881
描述与应用 电压放大器的应用 功率放大器应用 •高电压:VCEO=-120V •高转换频率:FT =120兆赫(典型值) •小型扁平封装 •PC= 12 W(安装在陶瓷基板上) •互补2SC2881
