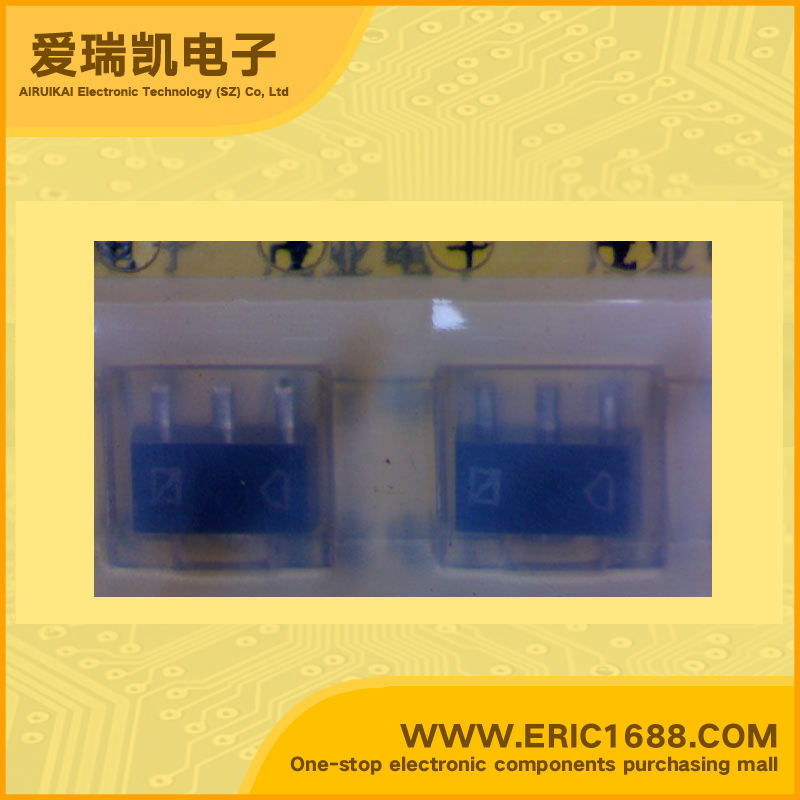

2SA1201 PNP transistors（BJT） -120V -800mA/-0.8A 120MHz 80~160 -1000mV/-1V SOT-89/SC-62 marking DO voltage/power amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
-120V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
-120V |
| 集电极连续输出电流IC Collector Current(IC) |
-800mA/-0.8A |
| 截止频率fT Transtion Frequency(fT) |
120MHz |
| 直流电流增益hFE DC Current Gain(hFE) |
80~160 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage |
-1000mV/-1V |
| 耗散功率Pc PoWer Dissipation |
500mW/0.5W |
| Description & Applications | Voltage Amplifier Applications Power Amplifier Applications • High voltage: VCEO = −120 V • High transition frequency: fT = 120 MHz (typ.) • Small flat package • PC = 1 to 2 W (mounted on a ceramic substrate) • Complementary to 2SC2881 |
| 描述与应用 | 电压放大器的应用 功率放大器应用 •高电压：VCEO=-120V •高转换频率：FT =120兆赫（典型值） •小型扁平封装 •PC= 12 W（安装在陶瓷基板上） •互补2SC2881 |
