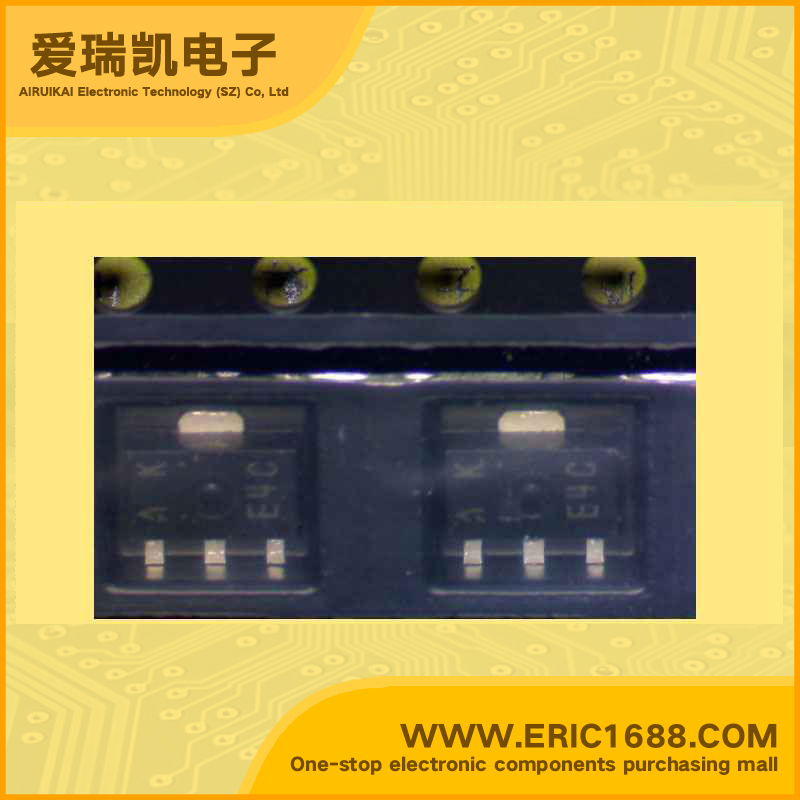

2SA1740E PNP transistors（BJT） -400V -200mA/-0.2A 70MHz 100~200 -800mV/-0.8V SOT-89/PCP marking AKE high voltage driver
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -400V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | -400V |
| 集电极连续输出电流IC Collector Current(IC) | −200mA/-0.2A |
| 截止频率fT Transtion Frequency(fT) | 70MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 100~200 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | −800mV/-0.8V |
| 耗散功率Pc PoWer Dissipation | 1.3W |
| Description & Applications | PNP Epitaxial planar silicon transistor NPN triple diffused planar silicon transistor High-Voltage Driver Applications high breakdown voltage； adoption of MBIT process； excellent hFE linearity |
| 描述与应用 | PNP外延平面硅晶体管 NPN三重扩散平面硅晶体管 高电压驱动器应用 击穿电压高; 通过MBIT过程的; 出色的放大线性度 |
