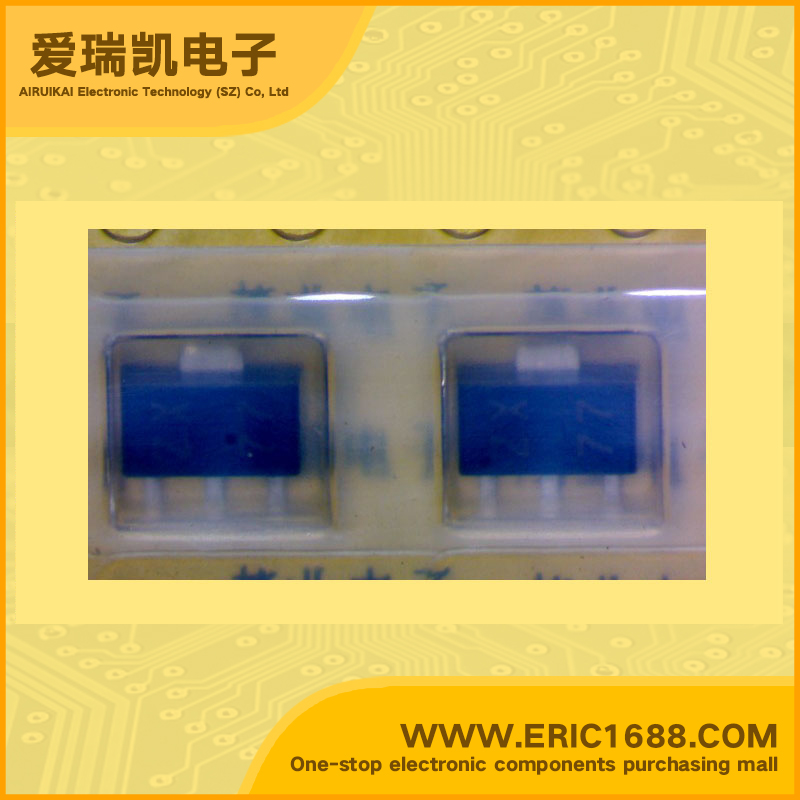

2SB1628 PNP transistors（BJT） -20V -5A 320MHz 140~280 -550mV/-0.55V SOT-89/SC-62 marking ZX low-frequency power amplifier/motor driver
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
−20V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
-16V |
| 集电极连续输出电流IC Collector Current(IC) |
-5A |
| 截止频率fT Transtion Frequency(fT) |
320MHz |
| 直流电流增益hFE DC Current Gain(hFE) |
140~280 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage |
−550mV/-0.55V |
| 耗散功率Pc PoWer Dissipation |
2W |
| Description & Applications | PNP Silicon epitaxial planar transistor FOR LOW-FREQUENCY POWER AMPLIFIERS AND MID-SPEED SWITCHING The 2SB1628 features high current capacity in small dimension and is ideal for DC/DC converters and motor drivers. FEATURES • High current capacitance • Low collector saturation voltage |
| 描述与应用 | PNP硅外延平面晶体管 低频功率放大器和中速切换 2SB1628具有高电流容量小尺寸和DC/ DC转换器和电机驱动器的理想选择。 特点 •高电流电容 •低集电极饱和电压 |
