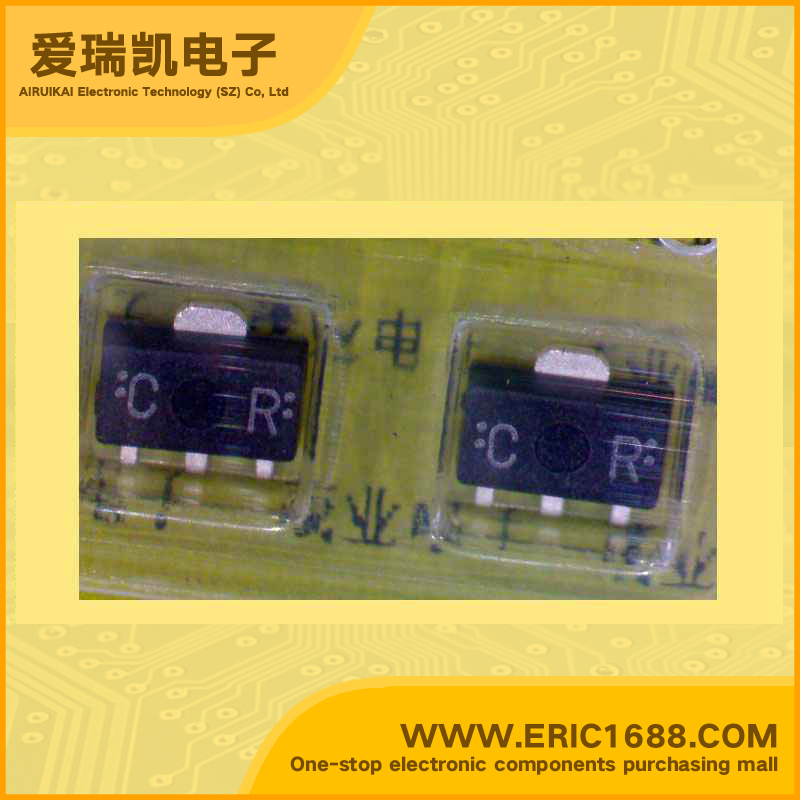

2SB767-R PNP transistors(BJT) -80V -500mA/-0.5A 120MHz 130~220 -400mV/-0.4V SOT-89/SC-62 marking CR low-frequency output amplifier

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
-80V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
−80V
集电极连续输出电流IC
Collector Current(IC)
−500mA/-0.5A
截止频率fT
Transtion Frequency(fT)
120MHz
直流电流增益hFE
DC Current Gain(hFE)
130~220
管压降VCE(sat)
Collector-Emitter SaturationVoltage
-400mV/-0.4V
耗散功率Pc
PoWer Dissipation
1W
Description & ApplicationsPNP Silicon epitaxial planar transistor For low-frequency output amplification Complementary to 2SD875 Features Large collector power dissipation PC. Mini Power type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing.
描述与应用PNP硅外延平面晶体管 对于低频输出放大 互补2SD875 特点 大集电极功耗PC。 迷你功率型封装,允许瘦身带包装盒包装的设备和通过自动插入。
