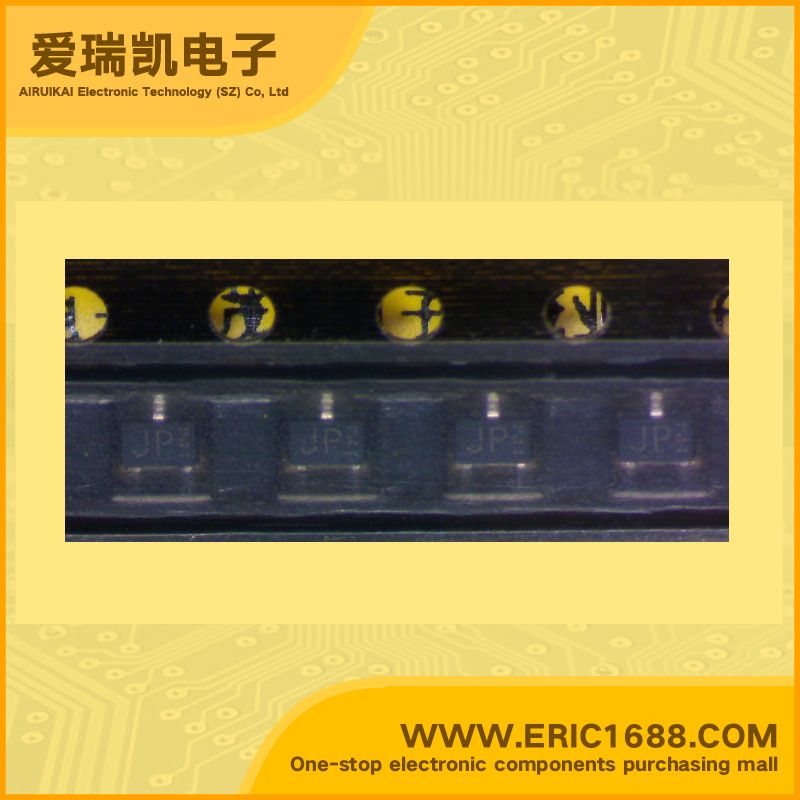

2SC4099 NPN Transistors(BJT) 25V 20mA 500MHz 82~180 100mV/0.1V SOT-323/SC-70/UMT3 marking JP RF amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
25V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
20V |
| 集电极连续输出电流IC Collector Current(IC) |
20mA |
| 截止频率fT Transtion Frequency(fT) |
500MHz |
| 直流电流增益hFE DC Current Gain(hFE) |
82~180 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage |
100mV/0.1V |
| 耗散功率Pc Power Dissipation |
150mW/0.15W |
| Description & Applications | Epitaxial planar NPN Silicon transistor RF Amplifier High transition frequency Low output capacitance Low base resistance for high gain and excellent noise response |
| 描述与应用 | 外延平面NPN硅晶体管 射频放大器 高转换频率 低输出电容 低基极电阻和良好的噪声响应 |
