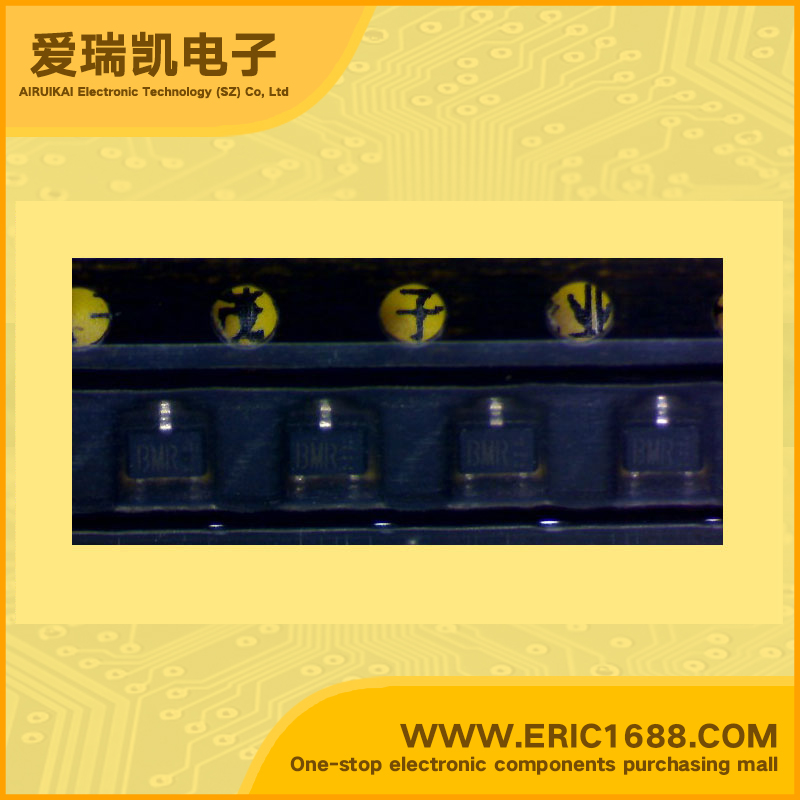

2SC4774 NPN Transistors(BJT) 12V 50mA 800MHz 180~390 <300mV/0.3V SOT-323/SC-70/UMT3 marking BMR high-frequency amplifier RFswitch
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
12V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
6V |
| 集电极连续输出电流IC Collector Current(IC) |
50mA |
| 截止频率fT Transtion Frequency(fT) |
800MHz |
| 直流电流增益hFE DC Current Gain(hFE) |
180~390 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage |
<300mV/0.3V |
| 耗散功率Pc Power Dissipation |
200mW/0.2W |
| Description & Applications | Features •High frequency amplifier transistor,RF switching (6V, 50mA) •Very low output-on resistance (Ron). •Low capacitance. |
| 描述与应用 | 特点 •高频晶体管放大器，RF开关（6V，50毫安） •非常低的输出电阻（Ron） •低电容。 |
