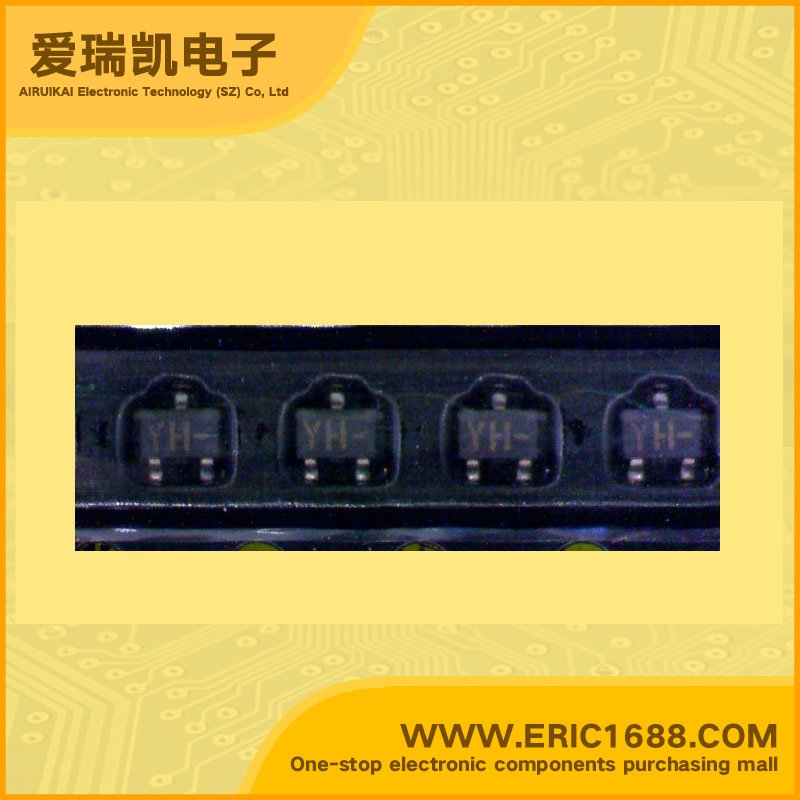

2SC4899YH NPN Transistors(BJT) 15V 20mA 9Ghz 50~250 SOT-323/SC-70/CMPAK marking YH
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 15V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 9V |
| 集电极连续输出电流IC Collector Current(IC) | 20mA |
| 截止频率fT Transtion Frequency(fT) | 9Ghz |
| 直流电流增益hFE DC Current Gain(hFE) | 50~250 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | |
| 耗散功率Pc Power Dissipation | 100mW/0.1W |
| Description & Applications | Features •NPN Epitaxial Planar Silicon Transistor •High gain bandwidth productfT = 9 GHz Typ •High gain, low noise figure PG = 14.0 dB Typ, NF = 1.2 dB Typ at f = 900 MHz Application •VHF / UHF wide band amplifier |
| 描述与应用 | 特点 •NPN平面外延硅晶体管 •高的增益带宽productfT=9 GHz的典型 •高增益，低噪声系数，PG=14.0 dB（典型值），NF= 1.2 dB（典型值）在f=900兆赫 应用 •VHF / UHF宽频带放大器 |
