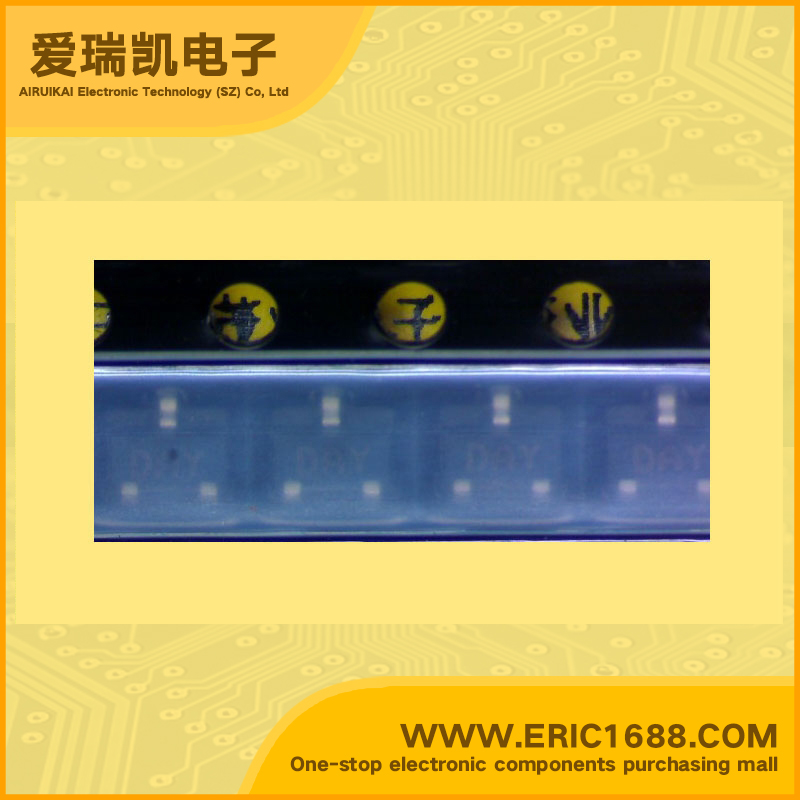

2SC5343SY NPN Transistors(BJT) 60V 150mA/0.15A >80MHz 120~240 <250mV/0.25V SOT-23/SC-59 marking DAY small signal amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 60V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 150mA/0.15A |
| 截止频率fT Transtion Frequency(fT) | >80MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 120~240 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | <250mV/0.25V |
| 耗散功率Pc Power Dissipation | 150mW/0.15W |
| Description & Applications | Description • General small signal amplifier Features • Low collector saturation voltage : VCE(sat)=0.25V(Max.) • Low output capacitance : Cob=2pF(Typ.) • Complementary pair with 2SA1980E |
| 描述与应用 | 描述 •一般的小信号放大器 特点 •低集电极饱和电压VCE（星期六）=0.25V（最大） •低输出电容：COB=2PF |
