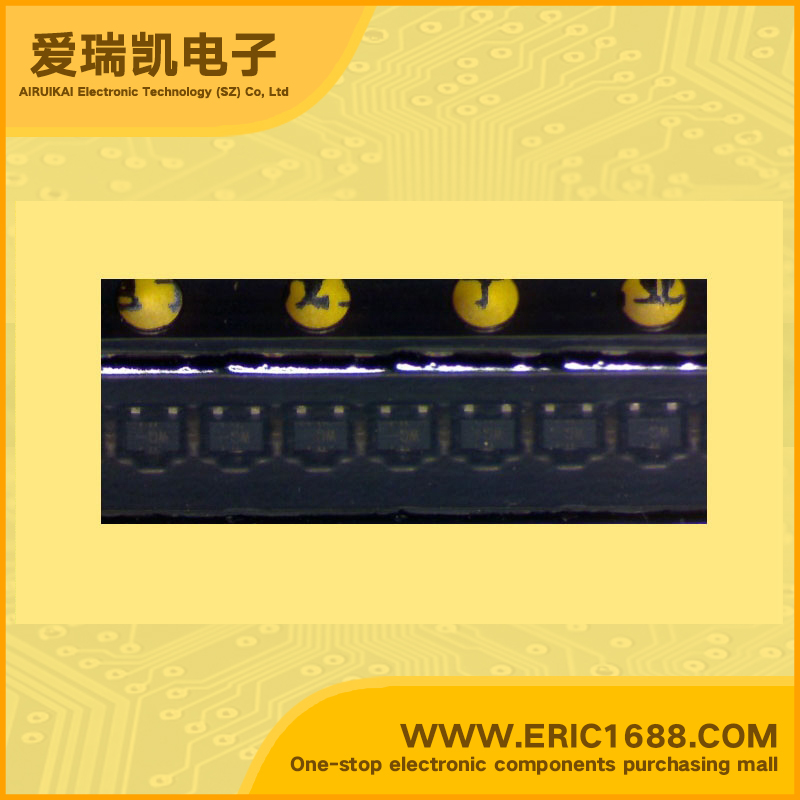

2SC5812WG NPN Transistors(BJT) 15V 50mA 11GHz 120~150 SOT-623/MFPAK marking WG VHF/UHF wide band amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 15V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 4V |
| 集电极连续输出电流IC Collector Current(IC) | 50mA |
| 截止频率fT Transtion Frequency(fT) | 11GHz |
| 直流电流增益hFE DC Current Gain(hFE) | 120~150 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | |
| 耗散功率Pc Power Dissipation | 80mW |
| Description & Applications | Silicon NPN Epitaxial VHF/UHF wide band amplifier Application • High power gain, Low noise figure at low power operation: |S21|2 = 17 dB typ, NF = 1.0 dB typ (VCE = 1 V, IC = 5 mA, f = 900 MHz) |
| 描述与应用 | NPN硅外延 VHF/ UHF宽频带放大器 应用 •高功率增益，低噪声系数低功率操作： | S21|2 =17 dB，NF= 1.0 dB（VCE= 1 V，IC= 5毫安，F =900兆赫） |
