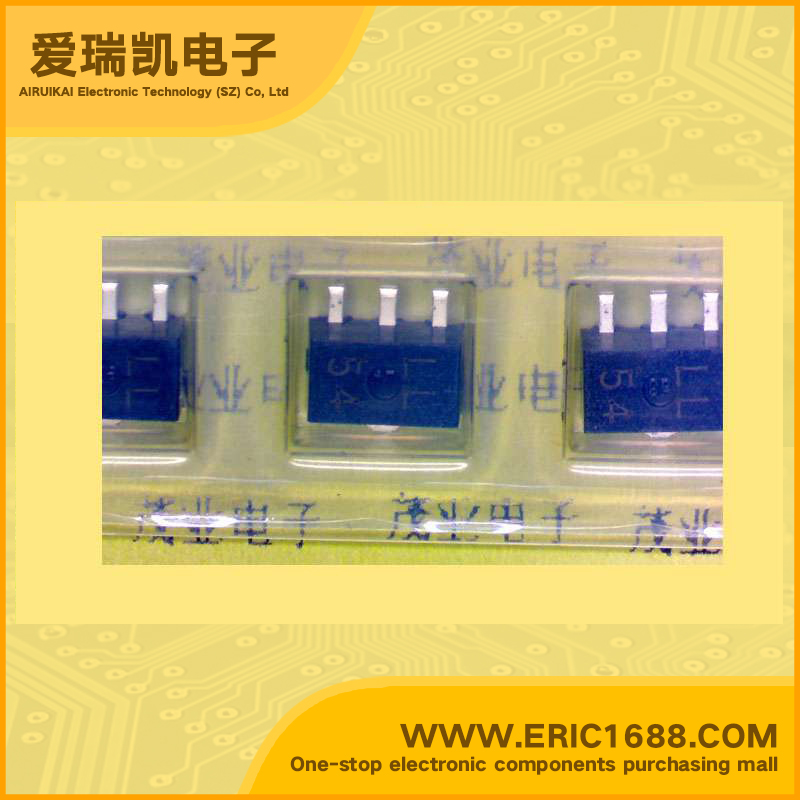

2SD1000 NPN Transistors(BJT) 80V 300mA/0.3A 140MHz 135~270 150mV/0.15V SOT-89 marking LL radio power amplifier application
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
80V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
80V |
| 集电极连续输出电流IC Collector Current(IC) |
300mA/0.3A |
| 截止频率fT Transtion Frequency(fT) |
140MHz |
| 直流电流增益hFE DC Current Gain(hFE) |
135~270 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage |
150mV/0.15V |
| 耗散功率Pc Power Dissipation |
2W |
| Description & Applications | Silicon NPN epitaxial transistors description 2SD1007 is designed for audio frequency power amplifier application , especially in hybrid integrated circuits Features * low collector saturation voltage * world standard miniature package |
| 描述与应用 | NPN硅外延晶体管 描述 2SD1007是专为音频功放中的应用， 特别是在混合集成电路 特点 *低集电极饱和电压 |
