2SJ203 MOSFET P-Channel -16V 200mA 7ohm SOT-23 marking H14 high-speed switch Directly driven by ICs having a 5V power supply

Model：2SJ203

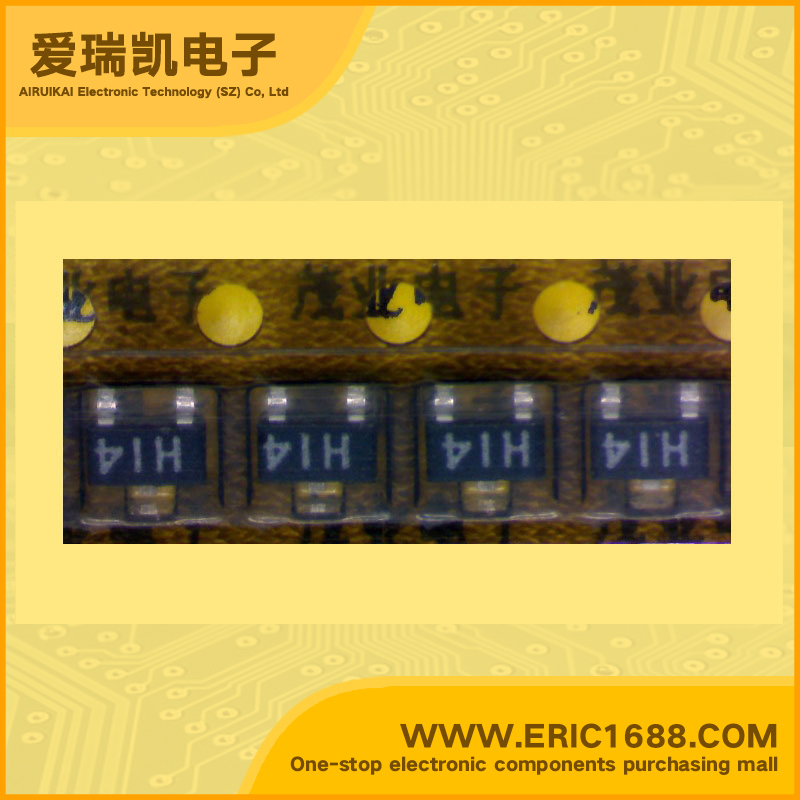

Mark / screen / code / typing：H14
Manufacturer：
Date Code：05+ 05+
Package：SOT-23/SC-59
Standard Package：3000
Min Order：10

Hot selling goods

Product description

最大源漏极电压Vds Drain-Source Voltage	-16V
最大栅源极电压Vgs(±) Gate-Source Voltage	7V
最大漏极电流Id Drain Current	-200mA/-0.2A
源漏极导通电阻Rds Drain-Source On-State Resistance	7Ω @-1A,-4V
开启电压Vgs（th） Gate-Source Threshold Voltage	-1.2--2.2V
耗散功率Pd Power Dissipation	200mW/0.2W
Description & Applications	MOS FIELD EFFECT TRANSISTOR P-CHANNEL MOS FET FOR SWITCHING Directly driven by ICs having a 5V power supply Has low on-state resistance
描述与应用	MOS场效应晶体管 P沟道MOS FET用于开关直接驱动5V电源IC 具有低导通电阻

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
2SJ204 MOSFET P-Channel -30V 200mA 6ohm SOT-23 marking H15 high-speed switch Directly driven by ICs having a 5V power supply	2SJ204 Mark：H15 Package：SOT-23/SC-59	-	Batch number：05+21R08+nopb 08+ROHS8RM	91650 Min Order:10
2SJ205 MOSFET P-Channel -16V 500mA 1.5ohm SOT-89 marking PD high-speed switch Directly driven by ICs having a 5V power supply	2SJ205 Mark：PD Package：SOT-89/SC-62	-	Batch number：05+ 05+	2080 Min Order:10
2SJ206 MOSFET P-Channel -30V 500mA 0.8ohm SOT-89 marking PH high-speed switch Directly driven by ICs having a 5V power supply	2SJ206 Mark：PH Package：SOT-89/SC-62	-	Batch number：05+ 05+	200 Min Order:10
2SJ207 MOSFET P-Channel -16V 1mA 0.9ohm SOT-89 marking PE high-speed switch Directly driven by ICs having a 5V power supply	2SJ207 Mark：PE Package：SOT-89/SC-62	-	Batch number：05+ 05+	2167 Min Order:10
2SJ208 MOSFET P-Channel -16V 2A 0.7ohm SOT-89 marking PF high-speed switch Directly driven by ICs having a 5V power supply	2SJ208 Mark：PF Package：SOT-89/SC-62	-	Batch number：05nopb 05+NOPB400	1415 Min Order:10
2SJ209 MOSFET P-Channel -100V 100mA/0.1A 37ohm SOT-23 marking H17 high-speed switch Directly driven by ICs having a 5V power supply	2SJ209 Mark：H17 Package：SOT-23/SC-59	-	Batch number：07+ROHS 05+	0 Min Order:10
2SJ210 MOSFET P-Channel -60V 200mA 6ohm SOT-23 marking H16 high-speed switch Directly driven by ICs having a 5V power supply	2SJ210 Mark：H16 Package：SOT-23/SC-59	-	Batch number：05+ 05+	0 Min Order:10
