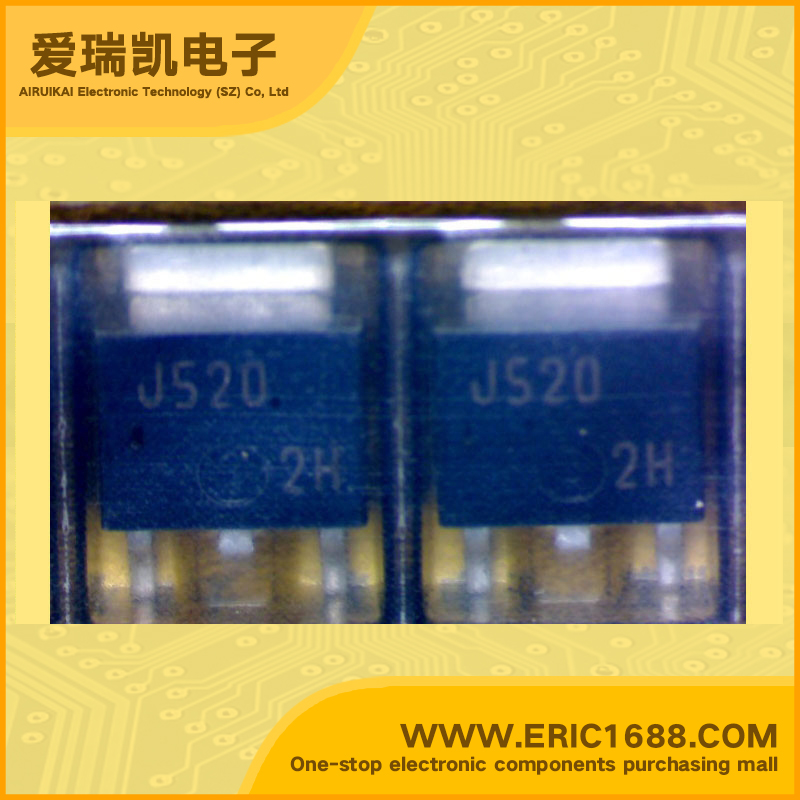

2SJ520 MOSFET P-Channel -20V -10A 0.048ohm SOT-252 marking J520 high-speed switch

Model：2SJ520
Mark / screen / code / typing：J520
Manufacturer：
Date Code：05+ 05+
Package：TO-252/DPAK/TP-FA
Standard Package：700
Min Order：10

Hot selling goods

Product description

最大源漏极电压Vds Drain-Source Voltage	-20V
最大栅源极电压Vgs(±) Gate-Source Voltage	10V
最大漏极电流Id Drain Current	-10A
源漏极导通电阻Rds Drain-Source On-State Resistance	0.048Ω @-5A,-4V
开启电压Vgs（th） Gate-Source Threshold Voltage	-0.3--1.3V
耗散功率Pd Power Dissipation	1W
Description & Applications	Features · Low ON resistance. · 2.5V drive.
描述与应用	·低导通电阻。 ·2.5V驱动器
