2SJ530STL MOSFET P-Channel -60V -15A 0.08ohm SOT-252 marking J530 high-speed switch

Model：2SJ530STL

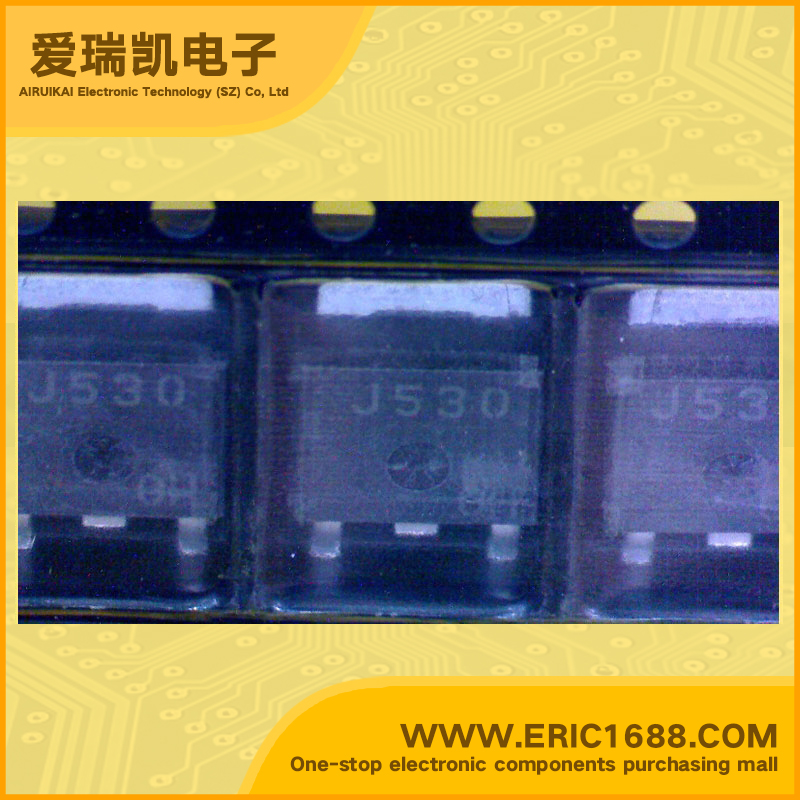

Mark / screen / code / typing：J530
Manufacturer：
Date Code：05+
Package：TO-252/DPAK
Standard Package：3000
Min Order：10

Hot selling goods

Product description

最大源漏极电压Vds Drain-Source Voltage	-60V
最大栅源极电压Vgs(±) Gate-Source Voltage	20V
最大漏极电流Id Drain Current	-15A
源漏极导通电阻Rds Drain-Source On-State Resistance	0.08Ω @-8A,-10V
开启电压Vgs（th） Gate-Source Threshold Voltage	-1.0--2.0V
耗散功率Pd Power Dissipation	30W
Description & Applications	Features •Low on-resistance RDS(on)= 0.08Ω typ. •4V gate drive devices. •High speed switching.
描述与应用	•低导通电阻 RDS（ON）=0.08Ω（典型值）。 •4V栅极驱动装置。 •高速开关

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
2SJ536 MOSFET P-Channel -30V -100mA/0.1A 0.05ohm SOT-323C marking 2C high-speed switch	2SJ536 Mark：2C Package：SOT-323/SC70	-	Batch number：05+	0 Min Order:10
2SJ538 MOSFET P-Channel -30V -100mA/0.1A 0.05ohm SOT-323C marking J538 high-speed switch	2SJ538 Mark：J538 Package：SOT-323/SC70	-	Batch number：05+	159 Min Order:10
2SJ550STL MOSFET P-Channel -60V -15A 0.75ohm SOT-262 marking J550 high-speed switch	2SJ550STL Mark：J550 Package：LDPAK	-	Batch number：02+	0 Min Order:10
2SJ551-90STR MOSFET P-Channel -60V -18A 0.050ohm SOT-263 marking J551 high-speed switch	2SJ551-90STR Mark：J551 Package：LDPAK	-	Batch number：04+	700 Min Order:10
2SJ553 MOSFET P-Channel -60V -18A 0.050ohm SOT-262 marking J553 high-speed switch	2SJ553 Mark：J553 Package：LDPAK	-	Batch number：05+	0 Min Order:10
2SJ557 MOSFET P-Channel -30V 2.5A 0.114ohm SOT-23 marking XB high-speed switch	2SJ557 Mark：XB Package：SOT-23/SC-59	-	Batch number：05+ 05+NOPB5400	31450 Min Order:10
2SJ559 MOSFET P-Channel -30V 100mA/0.1A 0.006ohm SOT-523 marking C1 2.5V drive Low gate cut-off voltage	2SJ559 Mark：C1 Package：SOT-523	-	Batch number：05+ 05+08NOPB2K	68000 Min Order:10
