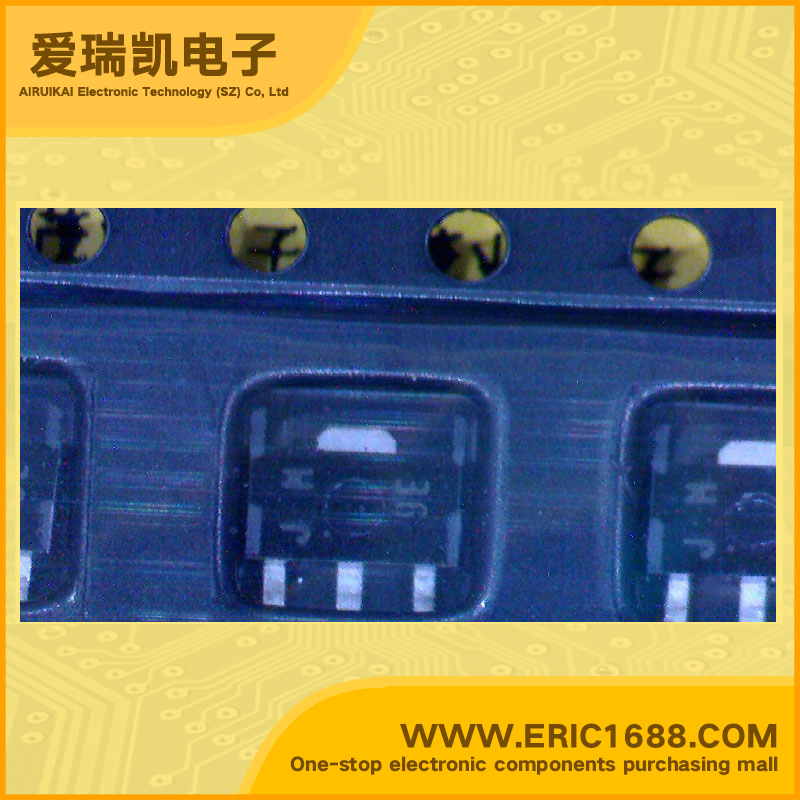

2SJ561-TD MOSFET P-Channel -30V -1.5A 0.36ohm SOT-89 marking JM low on-resistance ultra high-speed switch 4V drive

Model：2SJ561-TD
Mark / screen / code / typing：JM
Manufacturer：
Date Code：05+ 05+
Package：SOT-89/SC-62/PCP
Standard Package：1000
Min Order：10

Hot selling goods

Product description

最大源漏极电压Vds Drain-Source Voltage	-30V
最大栅源极电压Vgs(±) Gate-Source Voltage	20V
最大漏极电流Id Drain Current	-1.5A
源漏极导通电阻Rds Drain-Source On-State Resistance	0.36Ω @-750mA,-10V
开启电压Vgs（th） Gate-Source Threshold Voltage	-1.0--2.5V
耗散功率Pd Power Dissipation	1.3W
Description & Applications	Features · Low ON-resistance. · Ultrahigh-speed switching. · 4V drive.
描述与应用	·低导通电阻。 ·超高速开关。 ·4V驱动器
