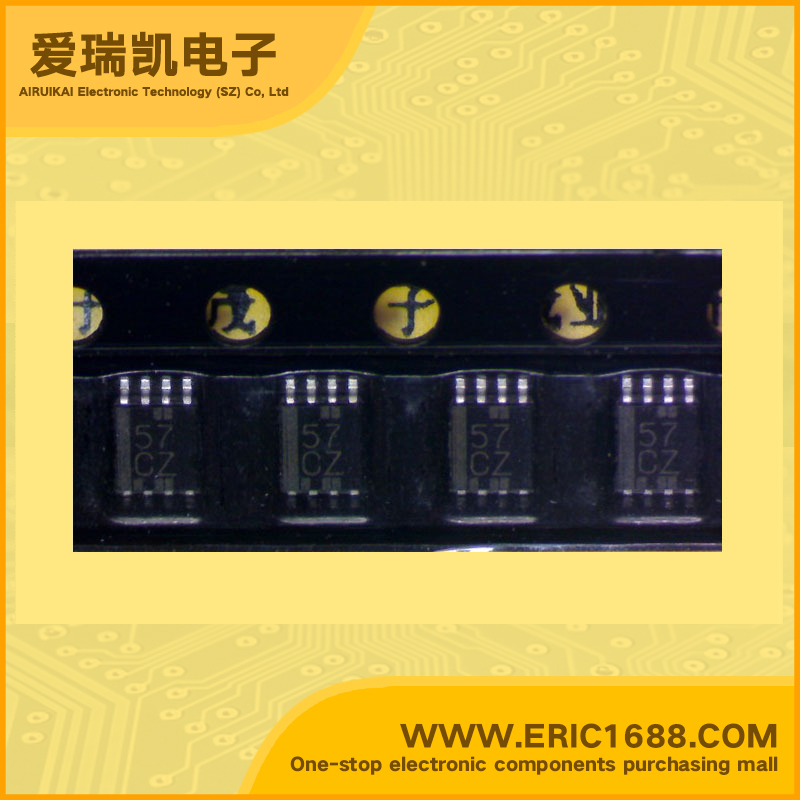

74LVC2G157DCU3-1 Signal Switch, Multiplexer, Decoder VFSOP8/US8 marking 57

Hot selling goods

Product description
逻辑类型
Logic Type
电路数
Number of Circuits
输入数
Number of Inputs
电源电压Vcc
Voltage - Supply
静态电流Iq
Current - Quiescent (Max)
单电源 Single Supply
输出高,低电平电流
Current - Output High, Low
1.65 V ~ 5.5 V
低逻辑电平
Logic Level - Low
This single 2-line to 1-line data selector/multiplexer is designed for 1.65-V to 5.5-V VCC operation.The SN74LVC2G157 features a common strobe (G) input. When the strobe is high, Y is low and Y is high.When the strobe is low, a single bit is selected from one of two sources and is routed to the outputs. The device provides true and complementary data.NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs,preventing damaging current backflow through the device when it is powered down. Available in the Texas Instruments NanoFree™ Package Supports 5-V VCC Operation Inputs Accept Voltages to 5.5 V Max tpd of 6 ns at 3.3 V Low Power Consumption, 10-µA Max ICC ±24-mA Output Drive at 3.3 V Typical VOLP(Output Ground Bounce)<0.8 V at VCC= 3.3 V, TA= 25°C
高逻辑电平
Logic Level - High
这个单-2线1线数据选择器/多路复用器专为1.65-V到5.5 V的VCC操作。SN74LVC2G157拥有一个共同的选通信号(G)输入。当选通信号高,Y是低和Y是高。当选通信号为低电平时,一个位从两个源之一被选择和被路由到输出。该器件提供真正的和互补的数据。 NanoFreeTM包装技术是IC包装概念的重大突破。这个装置是完全指定的部分断电应用程序使用IOFF。当断电时,IOFF电路关闭输出,防止破坏回流电流通过设备。 NanoFree™包装 支持5-V VCC操作 接受输入电压到5.5 V 最大TPD为6 ns,在3.3 V时 低功耗,10μA最大ICC ±24 mA输出驱动,在3.3 V时 典型的VoIP(输出地弹跳)<0.8 V,在VCC=3.3 V,TA= 25°C时
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
Description & Applications
描述与应用
