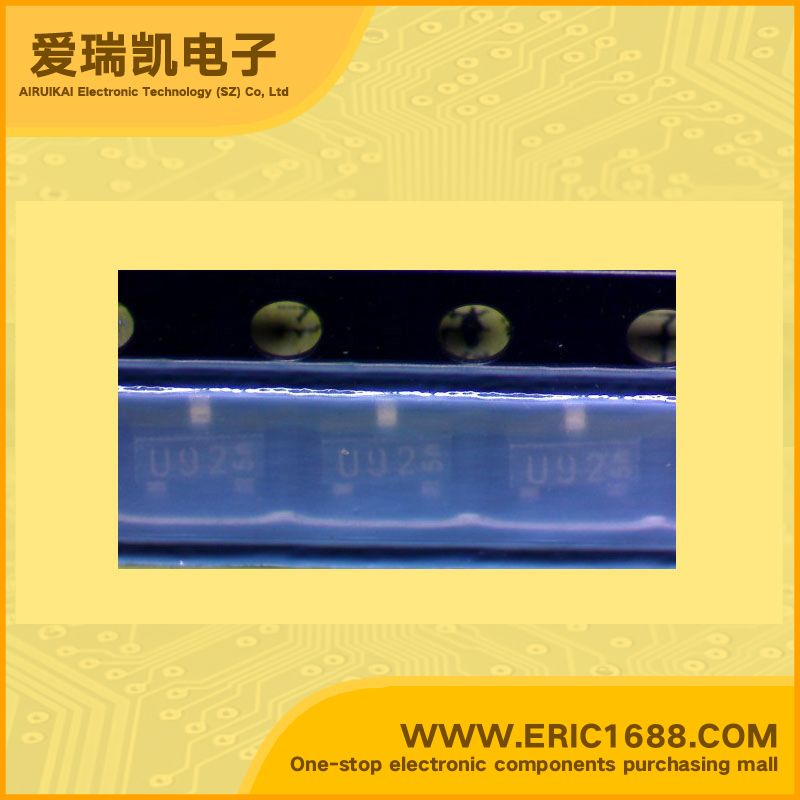

BSR17A NPN Transistors(BJT) 60V 100mA/0.1A 100MHz 100~300 200mV/0.2V SOT-23/SC-59 marking U92 switch and linear application
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 60V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 40V |
| 集电极连续输出电流IC Collector Current(IC) | 200mA/0.2A |
| 截止频率fT Transtion Frequency(fT) | 300MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 100~300 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 300mV/0.3V |
| 耗散功率Pc Power Dissipation | 350mW/0.35W |
| Description & Applications | NPN General Purpose Amplifier This device is designed as a general purpose amplifier and switch. The useful dynamic range extends to 100 mA as a switch and to 100 MHz as an amplifier. |
| 描述与应用 | NPN通用放大器 这个装置是专为通用放大器和开关。 有用的动态范围扩展到100毫安作为开关 作为一个放大器100兆赫。 |
