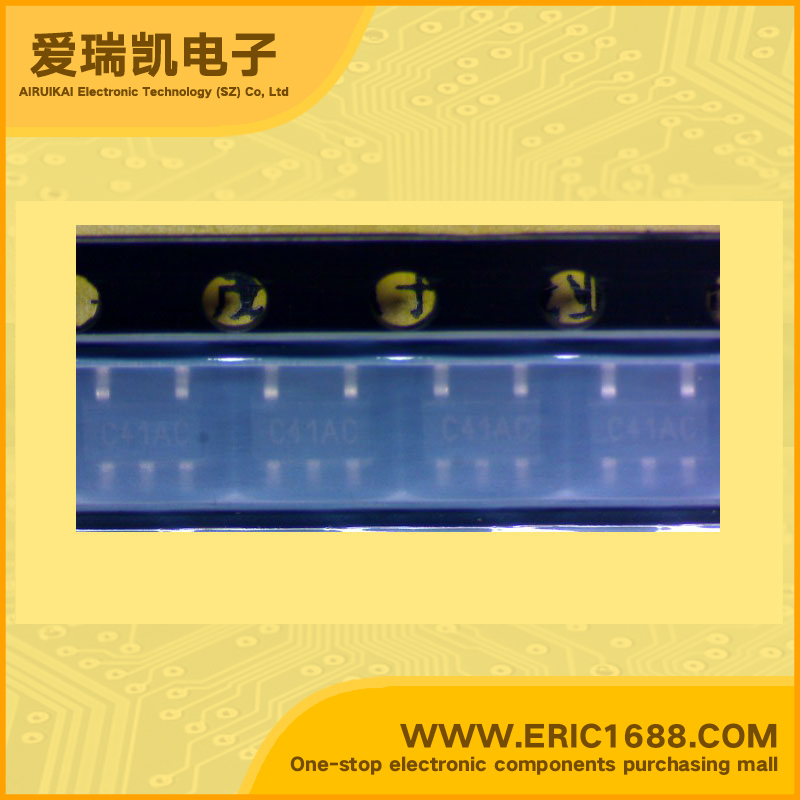

CM2841ACIM25TR LDO Voltage Regulator 1.2V 1.3V With Enable Pin SOT-153/SOT23-5 marking C41 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
7V
输出电压VOUT
Voltage - Output
1.2V
输出电流Io
Current - Output
150mA/0.15A
最大压降VDO
Voltage - Dropout
1.3V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
250mW/0.25W
Description & Applications150mA CMOS LDO WITH EN & PG;•Very Low Dropout Voltage •Low Current Consumption: Typ. 30µA, Max. 35µA •High Accuracy Output Voltage: +/- 1.5% •Guaranteed 150mA Output •Input Range of 2.6V to 7.0V •Thermal Shutdown •Current Limiting •Factory Pre-set Output Voltages •Short Circuit Current Fold-Back •Low Temperature Coefficient
描述与应用150MA CMOS LDO带连接PG;•非常低压差电压 •低电流消耗:典型。 30μA,最大。 35μA •高精度输出电压:+/ - 1.5% •保证150mA输出 •输入电压范围为2.6V至7.0V •热关断 •电流限制 •工厂Pre-set输出电压 •短路电流折返 •低温度系数
