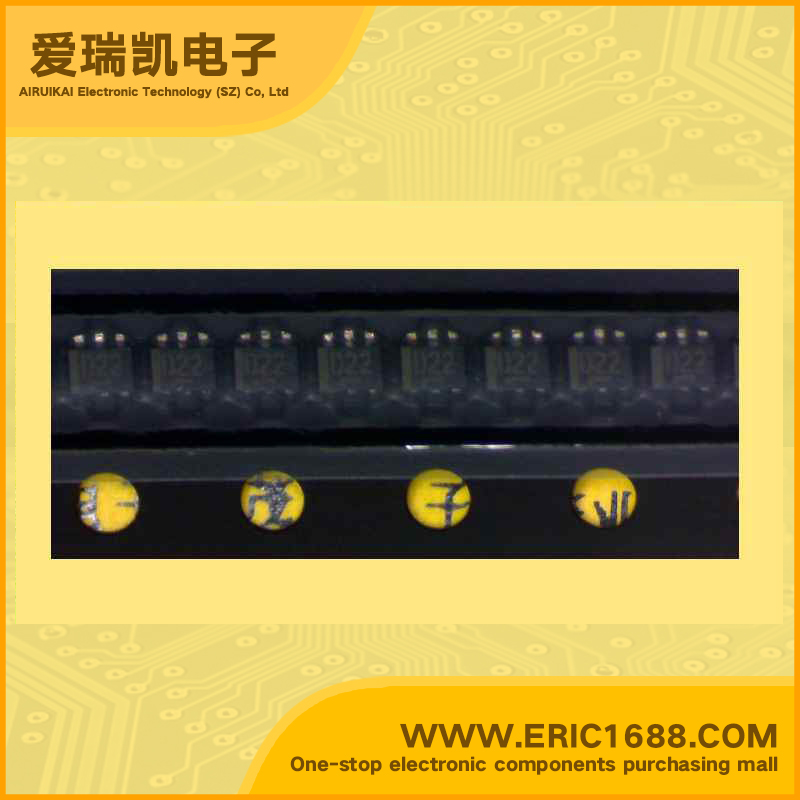

EMD22 NPN+PNP Complex Bipolar Digital Transistor 50V 100mA 150mW/0.15W SOT-563/EMT6 marking D22 switching inverting interface driver circuit

Hot selling goods

Product description
Collector-Base Voltage(VCBO) Q1/Q2 -50V/50V
Collector-Emitter Voltage(VCEO) Q1/Q2 -50V/50V
Collector Current(IC) Q1/Q2 -100mA/100mA
Q1 Input Resistance(R1) 4.7KΩ/Ohm
Q1Base-Emitter Resistance(R2) 47KΩ/Ohm
Q1(R1/R2) Q1 Resistance Ratio 0.1
Q2 Input Resistance(R1) 4.7KΩ/Ohm
Q2Base-Emitter Resistance(R2) 47KΩ/Ohm
Q2(R1/R2) Q2 Resistance Ratio 0.1
DC Current Gain(hFE)
 Transtion Frequency(fT) 250MHz
Power Dissipation 150mW/0.15W
Description & Applications Features •Dual Common Base−Collector Bias Resistor Transistors •Both the DTA143Z chip and DTC143Z chip in an EMTor UMT package. •Mounting possible with EMT3 or UMT3 automatic mounting machines. •Transistor elements are independent, eliminating interference. •Mounting cost and area can be cut in half.
描述与应用 特点 •双共基极 - 集电极偏置电阻晶体管 •两个的DTA143Z的芯片和DTC143Z芯片一个EMTor UMT包。 •安装可能EMT3或UMT3自动的安装机器。 •晶体管元素是独立的,消除干扰。 •安装成本和面积可减少一半
