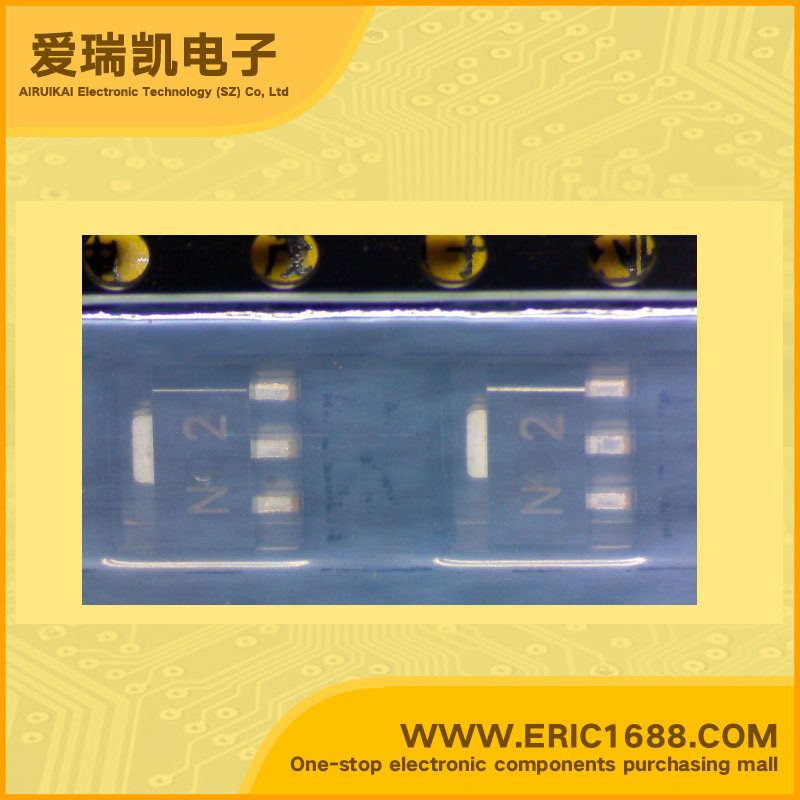

FCX491ATA NPN Transistors(BJT) 40V 1A 150MHz 300~900 500mV/0.5V SOT-89 marking N2 low consumption power supply switch
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 40V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 40V |
| 集电极连续输出电流IC Collector Current(IC) | 1A |
| 截止频率fT Transtion Frequency(fT) | 150MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 300~900 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 500mV/0.5V |
| 耗散功率Pc Power Dissipation | 1W |
| Description & Applications | 40V NPN SILICON PLANAR MEDIUM POWER TRANSISTOR IN SOT89 V(BR)CEO > 40V High current capability IC = 1A Low saturation voltage VCE(sat) < 500mV Complementary PNP type: FCX591A “Lead Free”, RoHS Compliant Power MOSFET gate driving Low loss power switching |
| 描述与应用 | 40V NPN硅平面中功率晶体管SOT89 V（BR）CEO>40V 高电流能力IC=1A 低饱和电压VCE（sat）<500mV的 互补PNP类型：FCX591A “对无铅，符合RoHS标准 功率MOSFET的栅极驱动 低损耗电源开关 |
