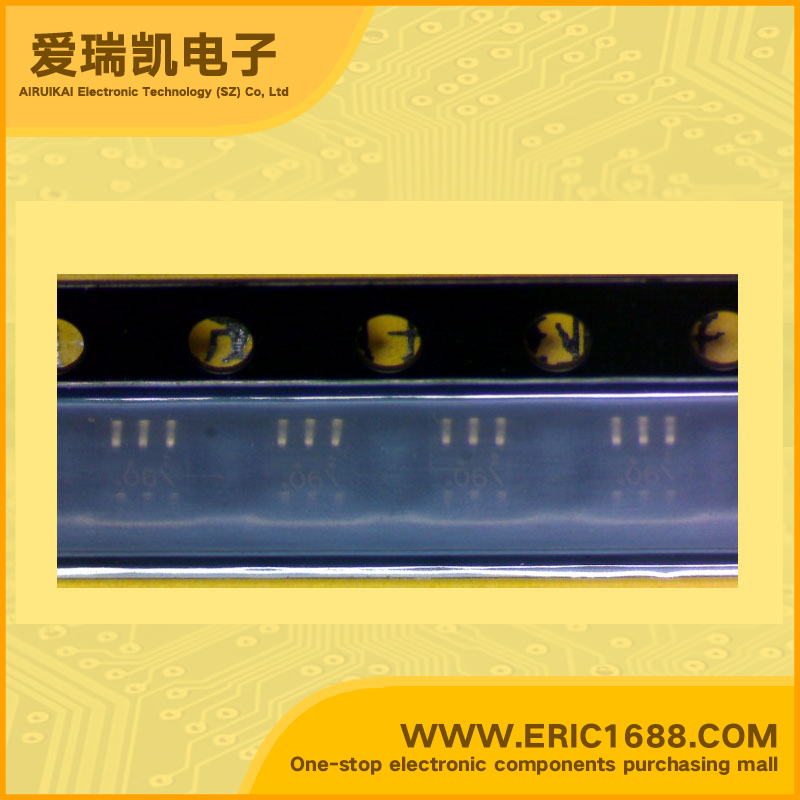

FDG6306P Complex FET -20V -600mA/-0.6A SOT-363/SC70-6 marking 6 battery management load switch
| 最大源漏极电压Vds Drain-Source Voltage | -20V |
| 最大栅源极电压Vgs(±) Gate-Source Voltage | -12V |
| 最大漏极电流Id Drain Current | -600mA/-0.6A |
| 源漏极导通电阻Rds Drain-Source On-State Resistance | 630mΩ@ VGS = -2.5V, ID = -500mA |
| 开启电压Vgs（th） Gate-Source Threshold Voltage | -0.6~-1.5V |
| 耗散功率Pd Power Dissipation | 300mW/0.3W |
| Description & Applications | P-Channel 2.5V Specified Power Trench MOSFET General Description This P-Channel 2.5V specified MOSFET is a rugged gate version of Fairchild Semiconductor’s advanced Power Trench process. It has been optimized for power management applications with a wide range of gate drive voltage (2.5V – 12V). Applications · Battery management · Load switch Features · Low gate charge · High performance trench technology for extremely low RDS(ON) · Compact industry standard SC70-6 surface mount package |
| 描述与应用 | P沟道2.5V额定功率沟道MOSFET 概述 此P沟道2.5V指定MOSFET是一种坚固的门版本飞兆半导体先进的功率沟槽过程。它已被优化的电源管理应用广泛的栅极驱动电压（2.5V - 12V）。 应用 ·电池管理 ·负荷开关 特点 ·低栅极电荷 ·高性能沟槽技术非常低的RDS（ON） ·紧凑型工业标准SC70-6表面贴装封装 |
