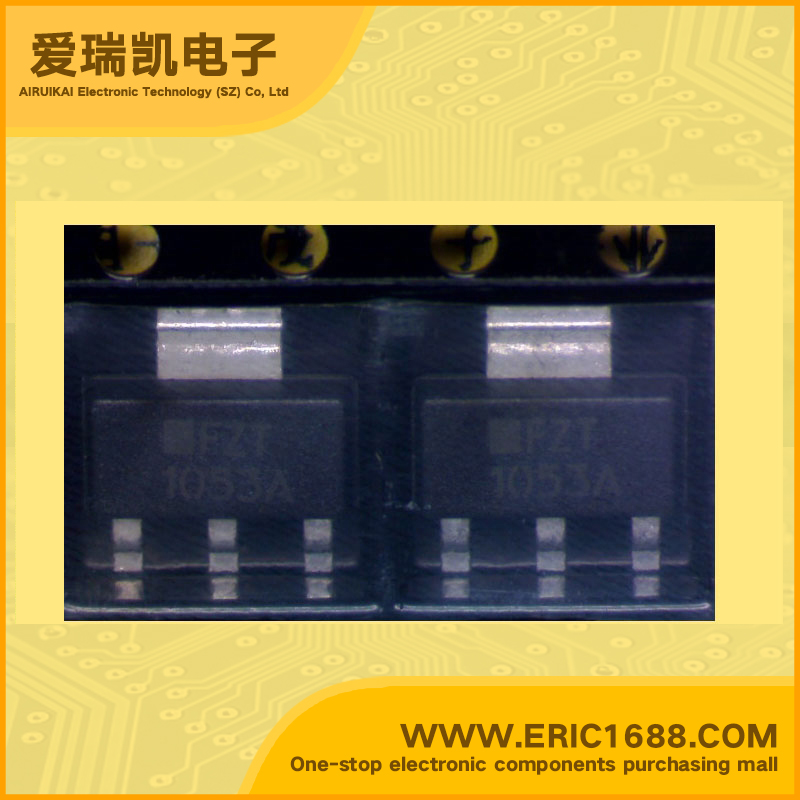

FZT1053ATA NPN Transistors(BJT) 150V 4.5A 140MHz 300~1200 440mV/0.44V SOT-223 marking FZT1053 medium powerhigh gain
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 150V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 75V |
| 集电极连续输出电流IC Collector Current(IC) | 4.5A |
| 截止频率fT Transtion Frequency(fT) | 140MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 300~1200 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 440mV/0.44V |
| 耗散功率Pc Power Dissipation | 2.5W |
| Description & Applications | SOT223 NPN SILICON PLANAR MEDIUM POWER HIGH GAIN TRANSISTOR 4.5 Amp Continuous Current 10 Amp Pulse Current Low Saturation Voltage High Gain Extremely Low Equivalent On-resistance |
| 描述与应用 | SOT223 NPN硅平面中功率高增益晶体管 4.5安培连续电流 10安培脉冲电流 低饱和电压 高增益 极低的等效导通电阻 |
